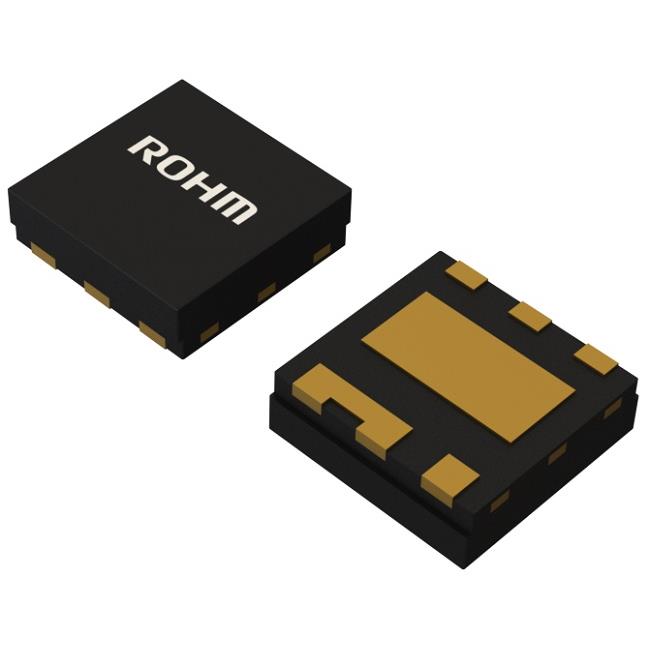

RF9G120BJFRATCR
PCH -40V -12A, DFN2020Y7LSAA, POManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 40 V 12A (Tc) 23W (Tc) Surface Mount DFN2020Y7LSAA
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 23W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 279µA |
| Supplier Device Package | DFN2020Y7LSAA |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | +5V, -20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 15.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 750 pF @ 20 V |
| Qualification | AEC-Q101 |
