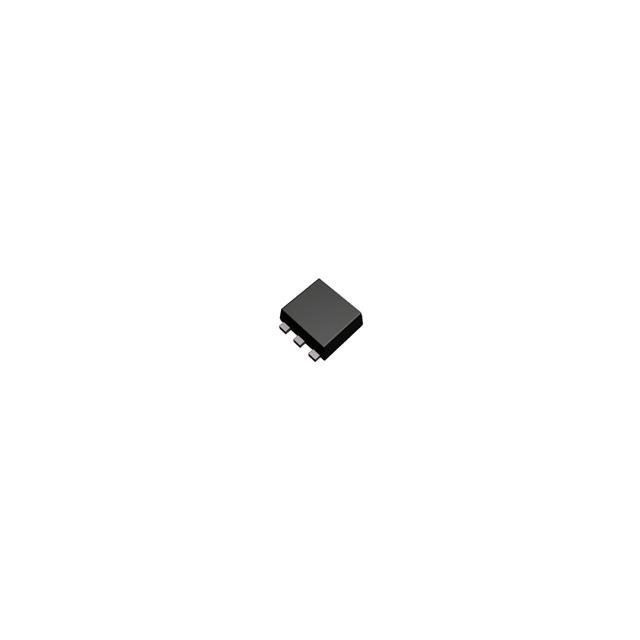

RF6G035BGTCR
NCH 40V 3.5A, TUMT6, POWER MOSFEManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 3.5A (Ta) 910mW (Ta) Surface Mount TUMT6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 46mOhm @ 3.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 910mW (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | TUMT6 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 150 pF @ 20 V |
