R6014YNX3C16
NCH 600V 14A, TO-220AB, POWER MOManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

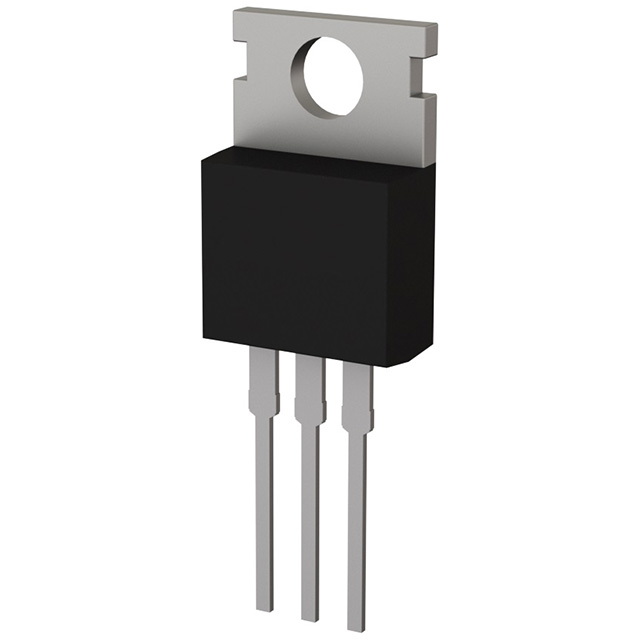

N-Channel 600 V 14A (Tc) 132W (Tc) Through Hole TO-220AB
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 5A, 12V |
| FET Feature | - |
| Power Dissipation (Max) | 132W (Tc) |
| Vgs(th) (Max) @ Id | 6V @ 1.4mA |
| Supplier Device Package | TO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 12V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 890 pF @ 100 V |
