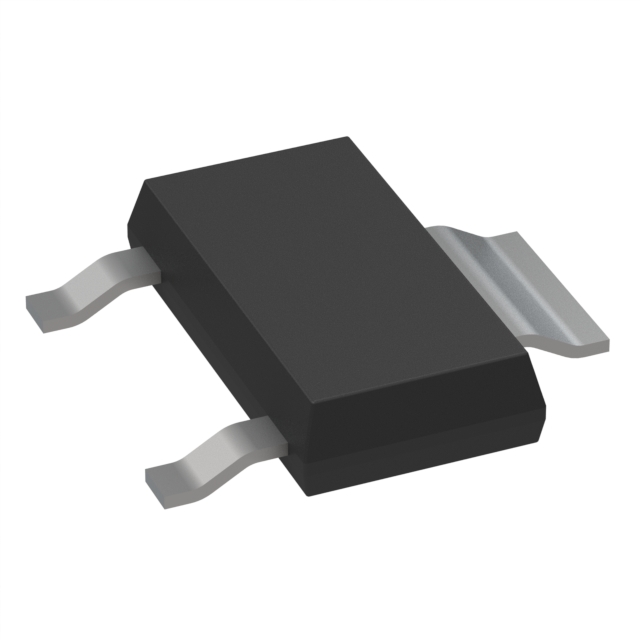

R6003JND4TL1
600V 1.3A SOT-223-3, PRESTOMOS WManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 1.3A (Tc) 7.8W (Tc) Surface Mount SOT-223-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.3A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.15Ohm @ 1.5A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 7.8W (Tc) |
| Vgs(th) (Max) @ Id | 7V @ 300µA |
| Supplier Device Package | SOT-223-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 180 pF @ 100 V |
