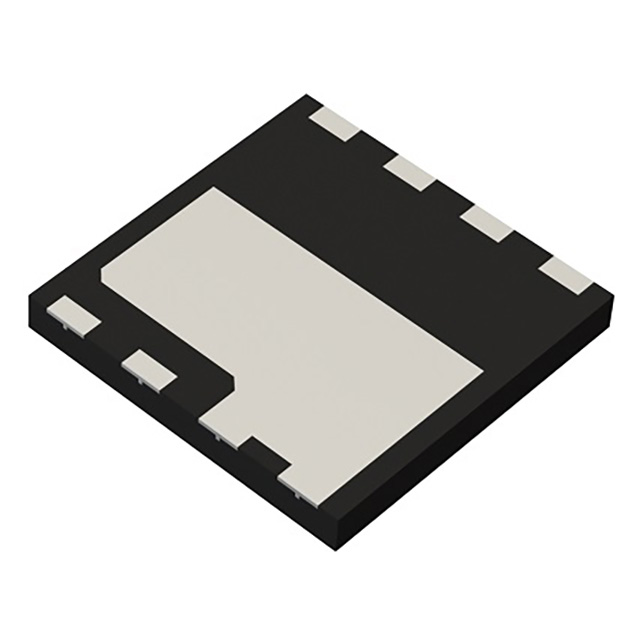

GNP1070TC-ZE2
ECOGAN, 650V 20A DFN8080K, E-MODManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 20A (Tc) 56W (Tc) Surface Mount DFN8080K
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 98mOhm @ 1.9A, 5.5V |
| FET Feature | - |
| Power Dissipation (Max) | 56W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 18mA |
| Supplier Device Package | DFN8080K |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 5.5V |
| Vgs (Max) | +6V, -10V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.2 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 400 V |
