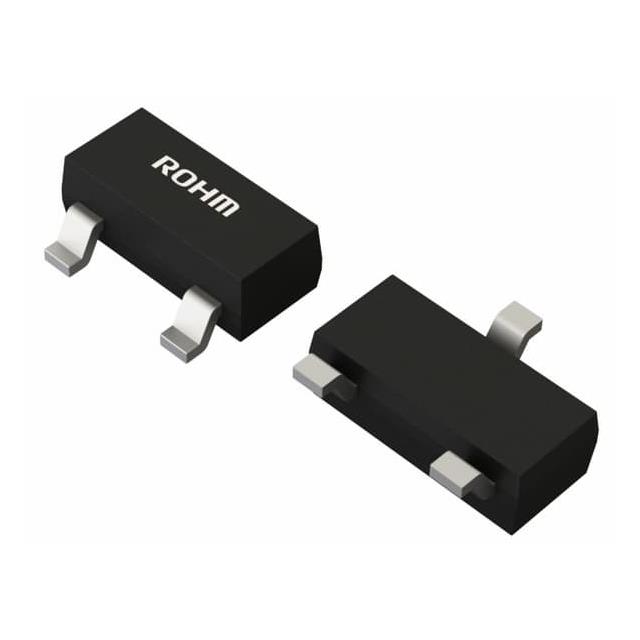

BSS670AHZGT116
NCH 60V 650MA, SOT-23, SMALL SIGManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 650mA (Ta) 200mW (Ta) Surface Mount SST3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 650mA (Ta) |
| Rds On (Max) @ Id, Vgs | 680mOhm @ 650mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 10µA |
| Supplier Device Package | SST3 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 47 pF @ 30 V |
| Qualification | AEC-Q101 |
