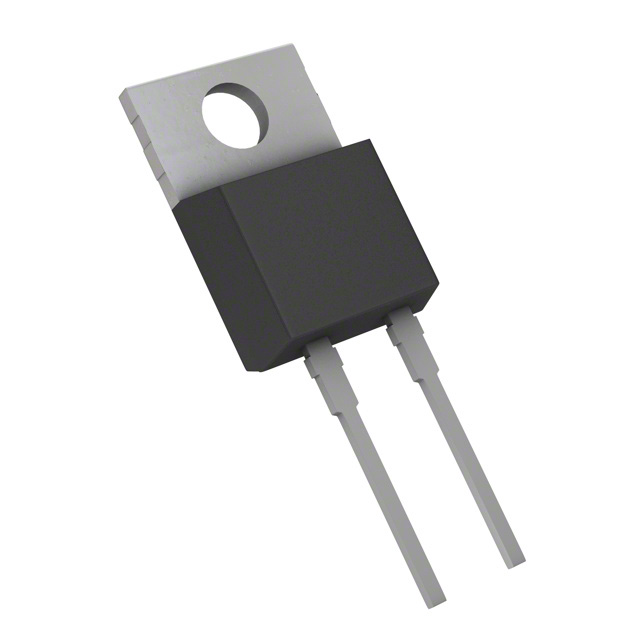

SCS215AGC
DIODE SIC 650V 15A TO220ACFPManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
The Rohm Semiconductor SCS215AGC is a SiC Schottky diode designed for high-performance applications. This through-hole component, packaged in a TO-220ACFP, offers a maximum reverse voltage of 650 V and an average rectified current of 15 A. It features a low forward voltage drop of 1.55 V at 15 A and exhibits no significant reverse recovery time, a key characteristic of Silicon Carbide technology. With a maximum operating junction temperature of 175°C, the SCS215AGC is suitable for demanding power conversion systems in industries such as industrial power supplies and renewable energy. The device has a specified capacitance of 550pF at 1V and 1MHz, and a reverse leakage current of 300 µA at 600 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 550pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-220ACFP |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 15 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 600 V |
