SCS212ANHRTRL
650V 12A SMD SILICON CARBIDEManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

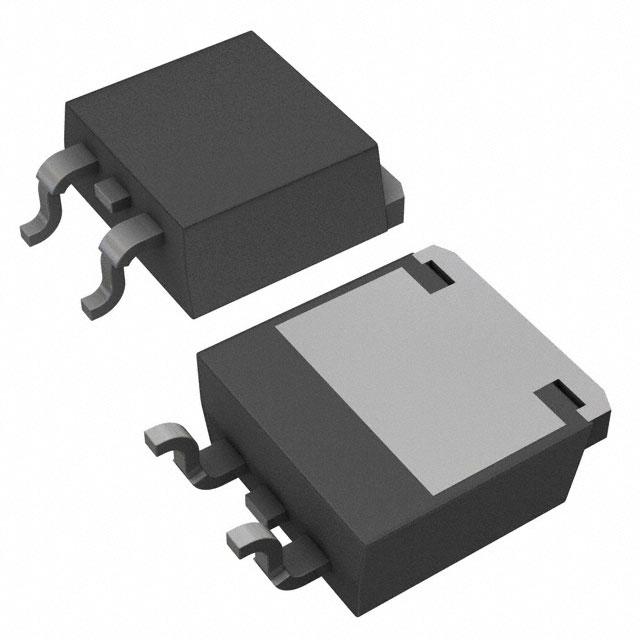

Diode 650 V 12A Surface Mount TO-263L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 440pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 12A |
| Supplier Device Package | TO-263L |
| Operating Temperature - Junction | 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 12 A |
| Current - Reverse Leakage @ Vr | 240 µA @ 600 V |
| Qualification | AEC-Q101 |
