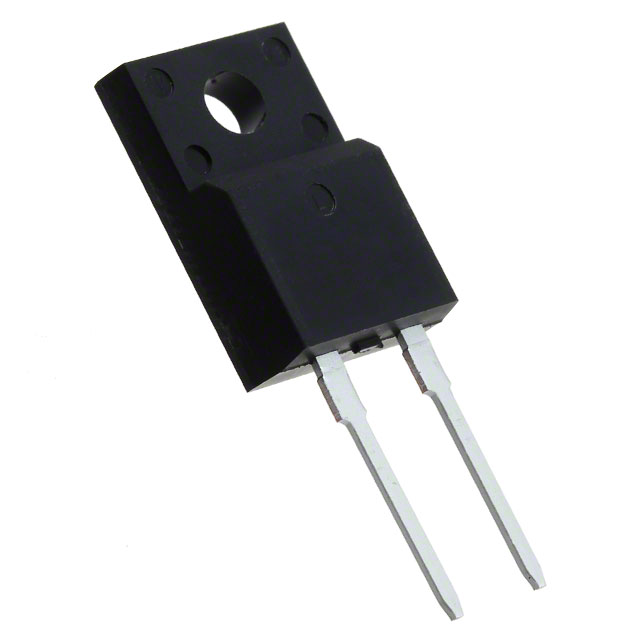

SCS206AMC
DIODE SIL CARB 650V 6A TO220FMManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Rohm Semiconductor SCS206AMC is a Silicon Carbide (SiC) Schottky diode designed for high-performance applications. This through-hole component, housed in a TO-220FM package, offers a maximum DC reverse voltage of 650 V and an average rectified forward current of 6 A. The SCS206AMC exhibits a low forward voltage drop of 1.55 V at 6 A and a reverse leakage current of 120 µA at 600 V. A key characteristic is its zero reverse recovery time, indicating exceptional switching speed. The device boasts a maximum junction operating temperature of 175°C. Its capacitance at 1V and 1MHz is 219 pF. This SiC diode is suitable for power factor correction, output rectification, and switching power supplies found in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 219pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | TO-220FM |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 6 A |
| Current - Reverse Leakage @ Vr | 120 µA @ 600 V |
