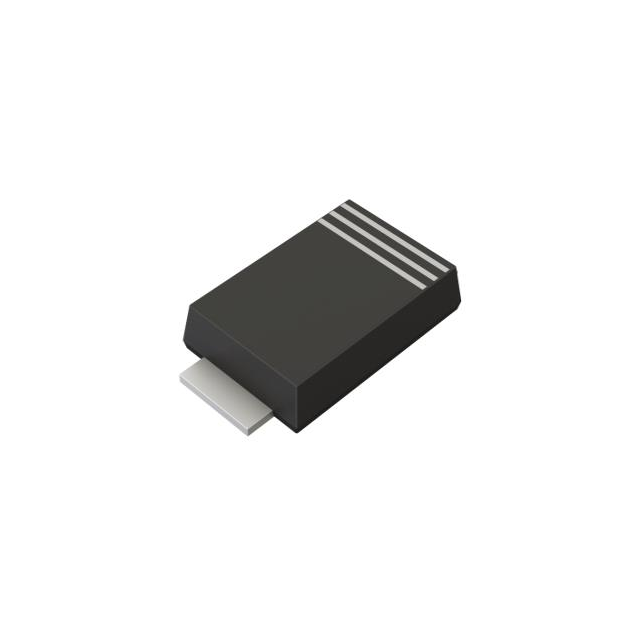

RR1LAM6STFTR
DIODE GEN PURP 600V 1A PMDTManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Rohm Semiconductor's RR1LAM6STFTR is a general-purpose rectifier diode designed for demanding applications. This surface mount component, housed in a SOD-128 package, offers a 600V reverse voltage rating and a 1A average rectified current capability. The device features a standard recovery time exceeding 500ns at 200mA. Key specifications include a forward voltage drop of 1.1V at 1A and a low reverse leakage current of 10 µA at 600V. With an operating junction temperature of up to 150°C, this diode is suitable for power supply circuits, voltage clamping, and general rectification tasks across industrial and automotive sectors. The component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-128 |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | PMDT |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
