RFUH20TJ6SFHGC9
SUPER FAST RECOVERY DIODE : RFUHManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

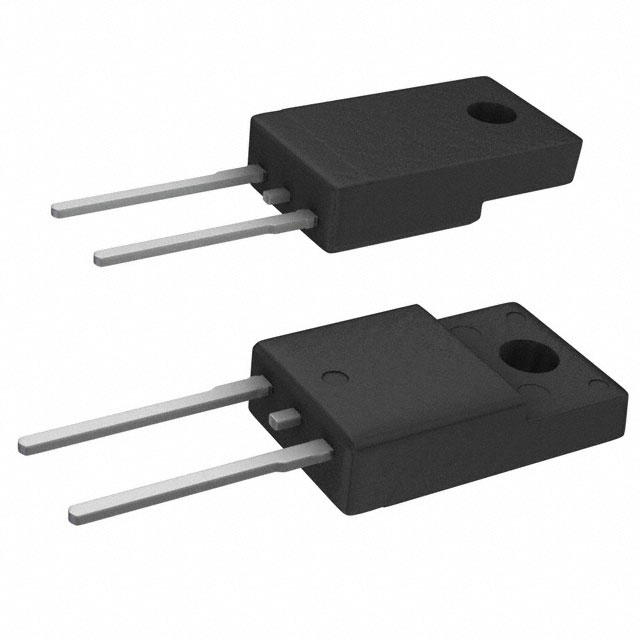

Diode 600 V 20A Through Hole TO-220ACFP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 220 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | TO-220ACFP |
| Operating Temperature - Junction | 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.8 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Qualification | AEC-Q101 |
