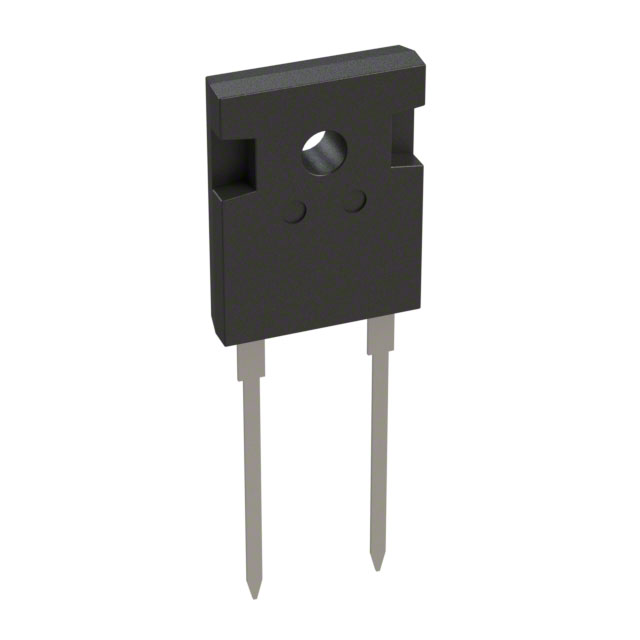

RFS60TZ6SGC13
DIODE GEN PURP 650V 60A TO247GEManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Rohm Semiconductor RFS60TZ6SGC13 is a general-purpose diode with a 650 V reverse voltage rating and a 60 A forward current capability. This through-hole component, housed in a TO-247GE package, features a fast recovery time of 55 ns, suitable for applications requiring efficient switching. The forward voltage drop is a maximum of 2.3 V at 60 A, with a reverse leakage current of 10 µA at 650 V. Operating at junction temperatures up to 175°C, this standard technology diode is commonly utilized in power supply, motor control, and industrial automation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | TO-247GE |
| Operating Temperature - Junction | 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 2.3 V @ 60 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 650 V |
