RFN20TF6SFH
DIODE GEN PURP 600V 20A TO220NFMManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

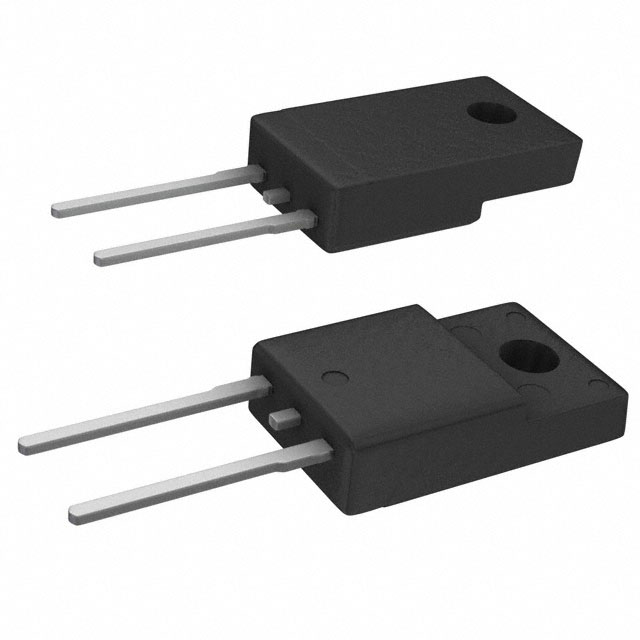

The Rohm Semiconductor RFN20TF6SFH is a general-purpose diode with a 600V reverse voltage rating and a continuous forward current capability of 20A. This through-hole component features a TO-220NFM package and a fast recovery time of 60 ns. It exhibits a maximum forward voltage drop of 1.55V at 20A and a low reverse leakage current of 10 µA at 600V. The device operates at a maximum junction temperature of 150°C. Qualified to AEC-Q101 standards and designed for automotive applications, this diode is suitable for power rectification and switching circuits in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | TO-220NFM |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Qualification | AEC-Q101 |
