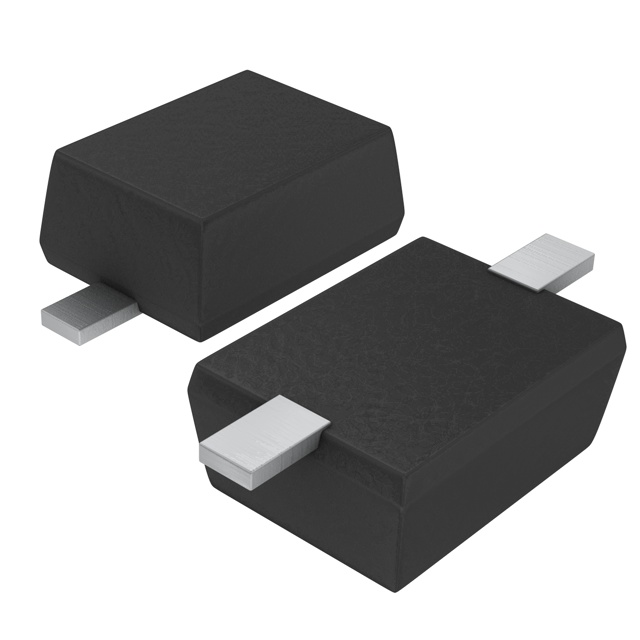

RBE05VM20ATE-17
DIODE SCHOTTKY 20V 500MA UMD2Manufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Rohm Semiconductor RBE05VM20ATE-17 is a Schottky diode designed for efficient rectification. Featuring a 20V reverse voltage rating and a 500mA average rectified current capacity, this component offers a low forward voltage of 430mV at 500mA. The reverse leakage current is specified at 200 µA @ 20 V, with a maximum junction operating temperature of 125°C. The RBE05VM20ATE-17 is housed in a UMD2 package (SC-90, SOD-323F) and is supplied on tape and reel. Its fast recovery characteristics make it suitable for applications in power management, consumer electronics, and industrial control systems requiring high-speed switching and low power loss.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | UMD2 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 200 µA @ 20 V |
