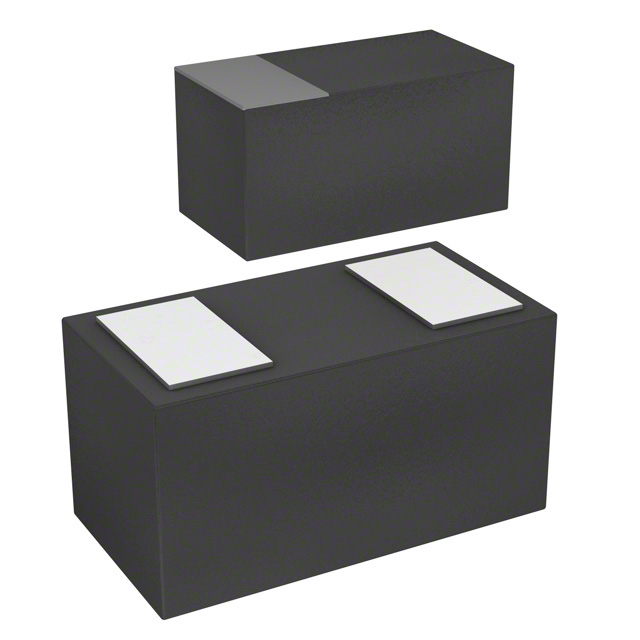

RB531ES-30T15R
DIODE SCHOTTKY 30V 100MA SMD0603Manufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
The Rohm Semiconductor RB531ES-30T15R is a Schottky barrier diode designed for surface mount applications. This component features a 30V reverse voltage rating and a 100mA forward current capability. Its low forward voltage drop of 500mV at 100mA and a reverse leakage of 50 µA at 30V make it suitable for various signal rectification and switching applications. The device operates across a wide temperature range, with a maximum junction temperature of 150°C. Packaged in a compact 0201 (SMD0603) footprint and supplied on tape and reel, the RB531ES-30T15R is utilized in industries such as consumer electronics, telecommunications, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DSN0603-2, SOD-962, SMD0603 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
