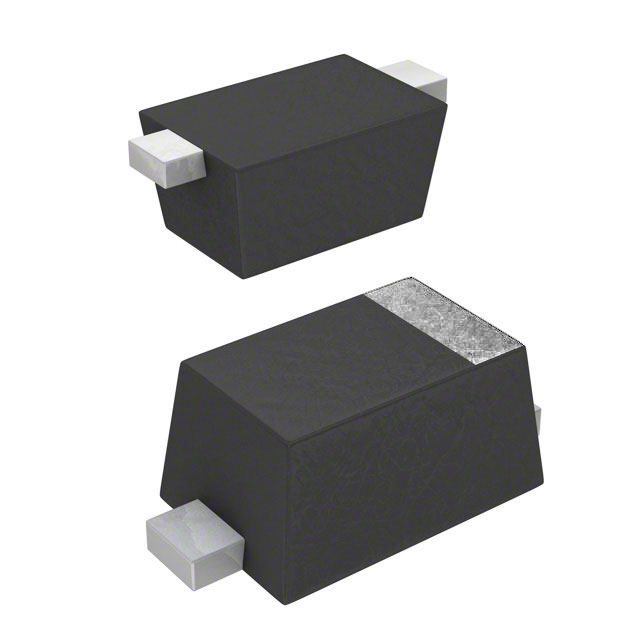

RB530S-30TE61

DIODE SCHOTTKY 30V 100MA EMD2

Manufacturer: Rohm Semiconductor

Categories: Single Diodes

Quality Control: Learn More

Rohm Semiconductor RB530S-30TE61 is a Schottky barrier diode designed for demanding applications. This component features a 30V reverse voltage rating and a 100mA average rectified current capability. The forward voltage drop is a low 450mV at 10mA, contributing to efficient power handling. Reverse leakage current is specified at 500 nA at 10V. The RB530S-30TE61 utilizes a Schottky technology for fast switching speeds, suitable for signal processing and power management circuits. It is housed in an EMD2 package, also identified as SC-79 or SOD-523, for surface mounting. The operating junction temperature can reach a maximum of 125°C. This diode is commonly found in consumer electronics, industrial automation, and telecommunications equipment. It is supplied on a tape and reel (TR) for automated assembly processes.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / CaseSC-79, SOD-523
Mounting TypeSurface Mount
SpeedSmall Signal =< 200mA (Io), Any Speed
TechnologySchottky
Capacitance @ Vr, F-
Current - Average Rectified (Io)100mA
Supplier Device PackageEMD2
Operating Temperature - Junction125°C (Max)
Voltage - DC Reverse (Vr) (Max)30 V
Voltage - Forward (Vf) (Max) @ If450 mV @ 10 mA
Current - Reverse Leakage @ Vr500 nA @ 10 V
