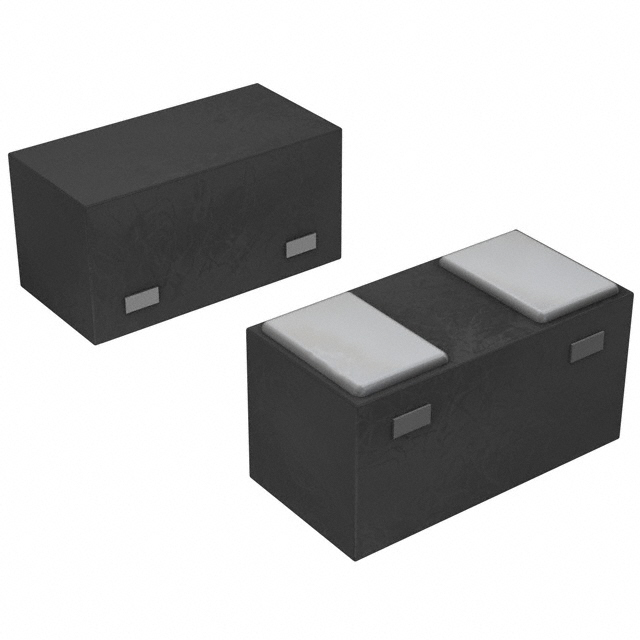

productimage

RB521FS-30T40RB

DIODE SCHOTTKY 30V 100MA SMD0402

Manufacturer: Rohm Semiconductor

Categories: Single Diodes

Quality Control: Learn More

Rohm Semiconductor RB521FS-30T40RB is a Schottky barrier diode designed for high-frequency applications. This single diode component features a 30V reverse voltage rating and a 100mA average rectified forward current. Its low forward voltage drop of 370mV at 10mA and minimal reverse leakage of 7µA at 10V make it suitable for efficient rectification and switching circuits. The RB521FS-30T40RB is presented in an SMD0402 package, a compact 2-SMD, No Lead format ideal for surface mounting in space-constrained designs. Operating up to a maximum junction temperature of 150°C, this component is supplied on a tape and reel for automated assembly. Its specifications are well-suited for use in portable electronics, power management, and signal processing applications.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case2-SMD, No Lead
Mounting TypeSurface Mount
SpeedSmall Signal =< 200mA (Io), Any Speed
TechnologySchottky
Capacitance @ Vr, F-
Current - Average Rectified (Io)100mA
Supplier Device PackageSMD0402
Operating Temperature - Junction150°C (Max)
Voltage - DC Reverse (Vr) (Max)30 V
Voltage - Forward (Vf) (Max) @ If370 mV @ 10 mA
Current - Reverse Leakage @ Vr7 µA @ 10 V
