RB521FS-30T40R
RASMID SERIES - SCHOTTKY BARRIERManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

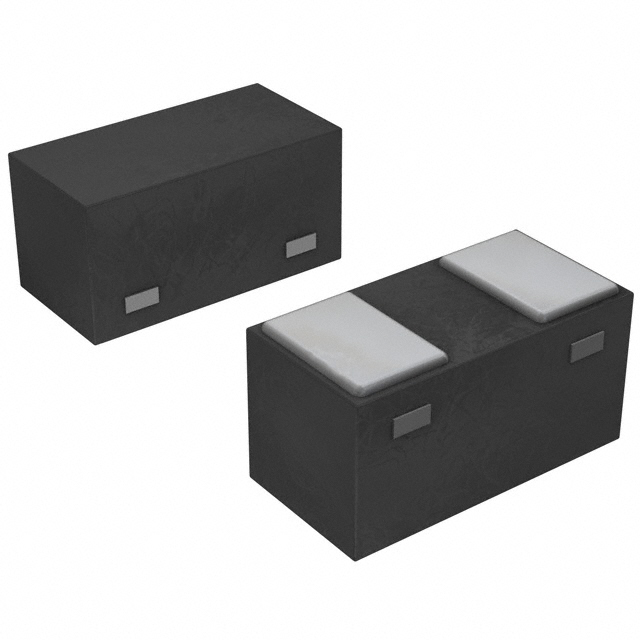

Rohm Semiconductor's RB521FS-30T40R is a Schottky barrier diode designed for demanding applications requiring fast switching and low forward voltage. This component, packaged in an SMD0402 (2-SMD, No Lead) for efficient surface mounting, offers a maximum DC reverse voltage of 30V and an average rectified current of 100mA. Its low forward voltage of 370mV at 10mA and a reverse leakage current of 7µA at 10V underscore its suitability for power management and signal processing circuits. With an operating junction temperature of up to 150°C, this diode provides reliable performance in industrial and automotive environments. The "Any Speed" designation for signals under 200mA indicates versatility in various signal path designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | SMD0402 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 370 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 7 µA @ 10 V |
