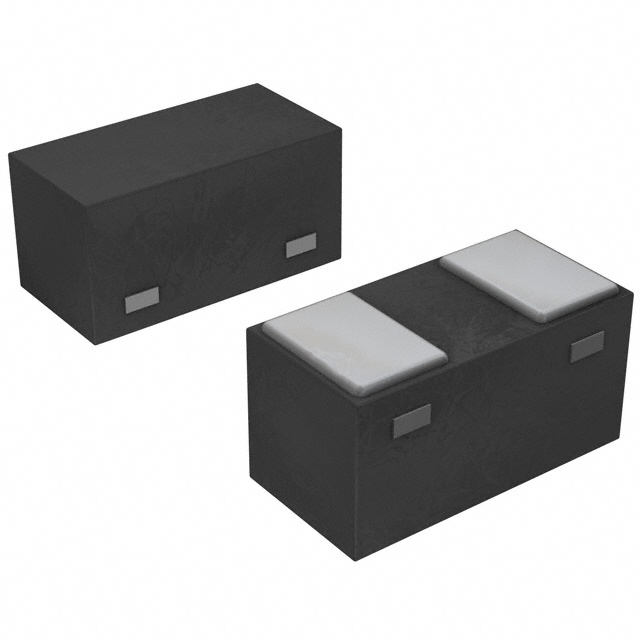

RB520ZS-40T2R
DIODE SCHOTTKY 40V 100MA GMD2Manufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Rohm Semiconductor RB520ZS-40T2R is a Schottky diode engineered for efficient rectification and switching in compact applications. This component features a 40V reverse voltage rating and a 100mA forward current capacity, with a low forward voltage drop of 480mV at 10mA. Its reverse leakage current is minimal, specified at 2µA at 40V. The RB520ZS-40T2R is housed in a GMD2 package, equivalent to the 0201 (0603 Metric) footprint, facilitating high-density surface mount assembly. Operating up to a junction temperature of 150°C, it is suitable for demanding environments. This diode is typically utilized in power management circuits, signal processing, and various consumer electronics and industrial control systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | GMD2 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 40 V |
