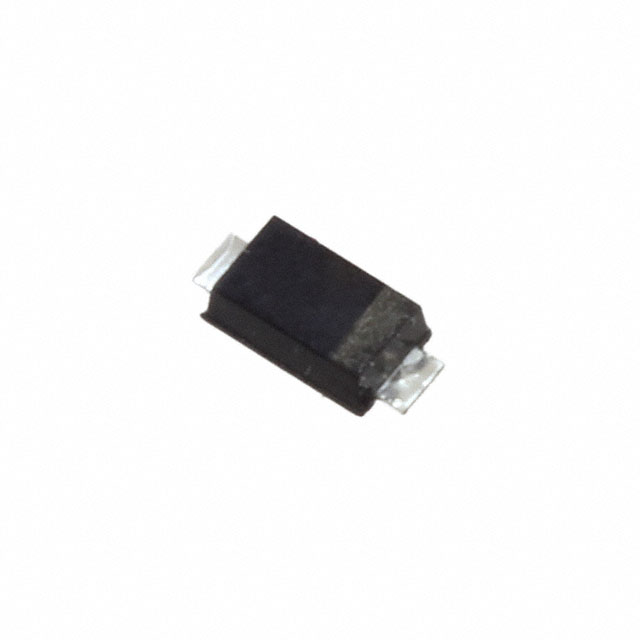

RB160M-50TR

DIODE SCHOTTKY 30V 1A SOD123W

Manufacturer: Rohm Semiconductor

Categories: Single Diodes

Quality Control: Learn More

Rohm Semiconductor RB160M-50TR is a Schottky barrier diode designed for demanding applications. This component features a maximum reverse voltage of 30 V and an average rectified forward current of 1 A. The forward voltage drop at 1 A is a low 360 mV, contributing to efficient power management. With a reverse leakage current of 1.5 mA at 30 V, it maintains performance in challenging conditions. The device exhibits a junction capacitance of 170 pF at 1 V and 1 MHz. Operating up to a maximum junction temperature of 150°C, it is suitable for high-temperature environments. The RB160M-50TR is supplied in a Tape & Reel (TR) package, ideal for automated assembly processes. This diode is commonly utilized in power supply circuits, switching regulators, and protection circuits across automotive and industrial sectors.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case-
Mounting Type-
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Capacitance @ Vr, F170pF @ 1V, 1MHz
Current - Average Rectified (Io)1A
Supplier Device Package-
Operating Temperature - Junction150°C (Max)
Voltage - DC Reverse (Vr) (Max)30 V
Voltage - Forward (Vf) (Max) @ If360 mV @ 1 A
Current - Reverse Leakage @ Vr1.5 mA @ 30 V
