RB080AR-40T7R
RASMID SERIES, LOW VF, 40V, 4A,Manufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

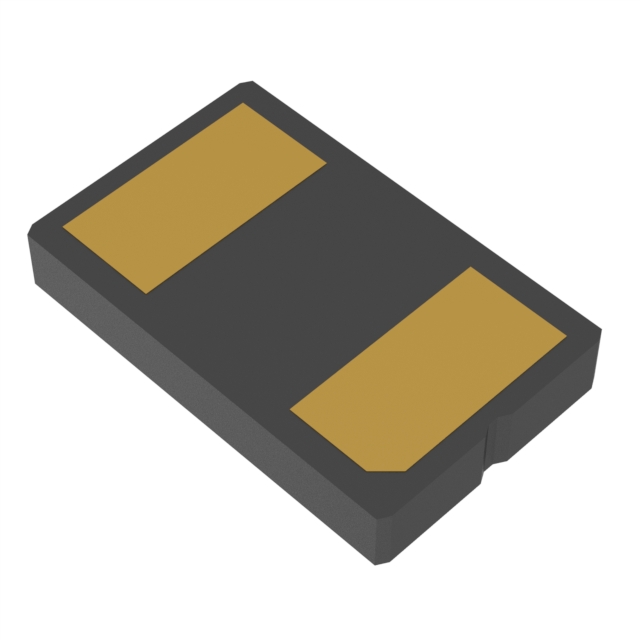

Diode 40 V 4A Surface Mount DSN2012-2
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 110pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | DSN2012-2 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 4 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V |
