RB068L100TE25
DIODE SCHOTTKY 100V 2A PMDSManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

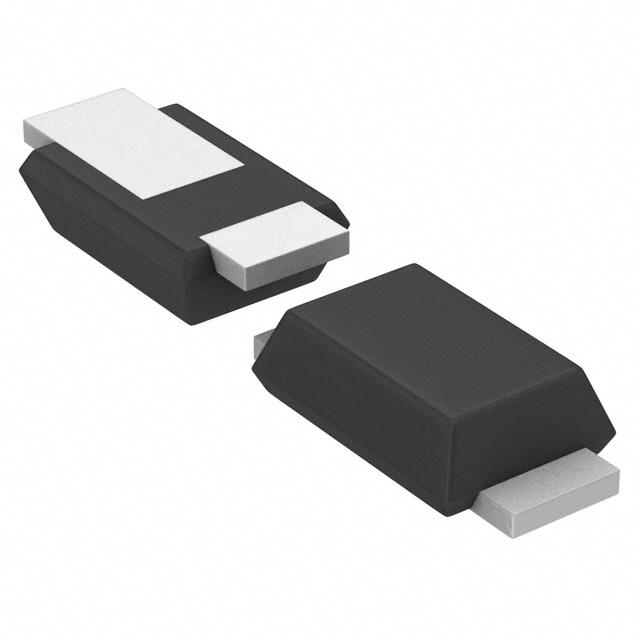

The Rohm Semiconductor RB068L100TE25 is a Schottky barrier rectifier diode designed for efficient power management. This surface-mount component, housed in a DO-214AC (SMA) package, offers a maximum DC reverse voltage of 100V and a forward voltage drop of 800mV at 2A. With an average rectified current capability of 2A and a reverse leakage of 50 µA at 100V, it exhibits excellent rectification characteristics. The device operates at junction temperatures up to 150°C (Max) and features fast recovery times, making it suitable for applications in power supplies, automotive electronics, and industrial automation. This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | PMDS |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
