1N4148T-72
DIODE GEN PURP 75V 150MA GSDManufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

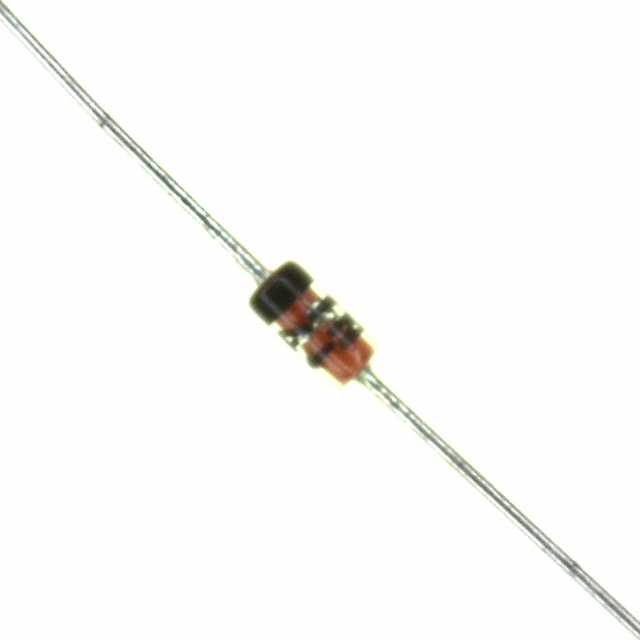

Rohm Semiconductor's 1N4148T-72 is a general-purpose silicon switching diode. This axial-lead device, packaged in a DO-204AH (DO-35) glass package, offers a repetitive peak reverse voltage of 75 V and an average forward rectified current of 150 mA. Key specifications include a forward voltage drop of 1 V maximum at 10 mA and a reverse leakage current of 5 µA maximum at 75 V. The diode exhibits a low junction capacitance of 4 pF at 0 V and 1 MHz, and a fast reverse recovery time of 4 ns, classifying it as a small signal diode. Operating across a temperature range of -65°C to 200°C, the 1N4148T-72 is commonly utilized in consumer electronics, industrial control, and automotive applications requiring reliable signal switching and rectification. This component is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | GSD |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
