1N4004AT-82
DIODE GEN PURP 400V 1A DO41Manufacturer: Rohm Semiconductor
Categories: Single Diodes
Quality Control: Learn More

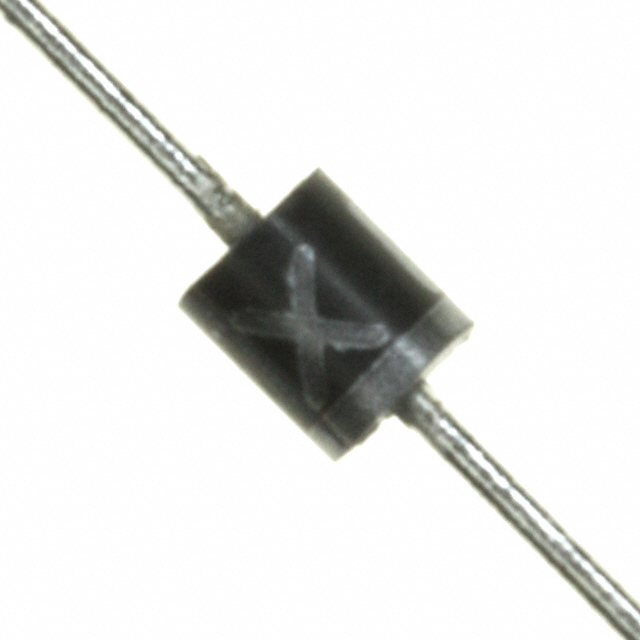

Rohm Semiconductor's 1N4004AT-82 is a general-purpose rectifier diode designed for standard recovery applications. Featuring a 400V reverse voltage rating and a 1A average rectified current capability, this component is suitable for a wide range of power supply and signal conditioning circuits. The diode exhibits a maximum forward voltage of 1.1V at 1A and a reverse leakage current of 10 µA at 400V. Its operating junction temperature reaches up to 175°C (Max). Packaged in a DO-204AL (DO-41) axial package for through-hole mounting, the 1N4004AT-82 is supplied in Tape & Box (TB) packaging. This component finds application in industrial power systems, consumer electronics, and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
