BC848CT116
TRANS NPN 30V 0.1A SST3Manufacturer: Rohm Semiconductor
Categories: Single Bipolar Transistors
Quality Control: Learn More

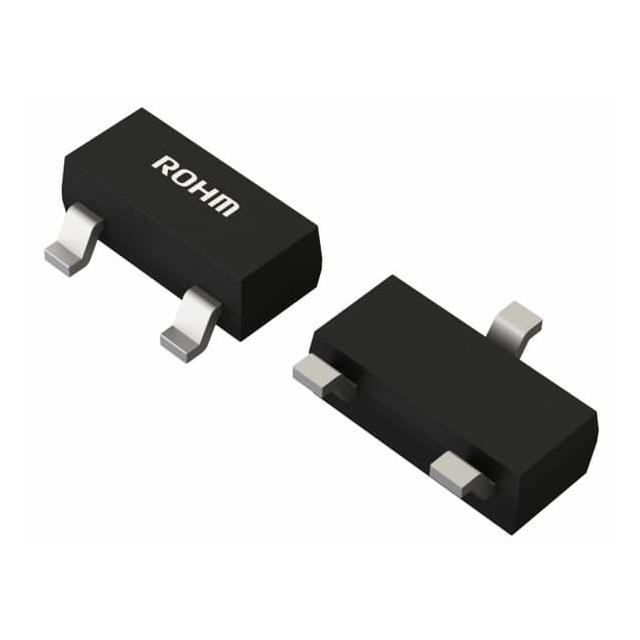

Rohm Semiconductor's BC848CT116 is an NPN bipolar junction transistor designed for surface mount applications. This component offers a collector-emitter breakdown voltage of 30V and a maximum collector current of 100mA. With a transition frequency of 200MHz and a power dissipation of 350mW, it is suitable for general-purpose amplification and switching in various industrial and consumer electronics. The device features a minimum DC current gain (hFE) of 420 at 2mA, 5V, and a Vce(sat) of 600mV at 5mA, 100mA. It is supplied in a Tape & Reel (TR) package, specifically the TO-236-3, SC-59, SOT-23-3 format, for automated assembly. The operating junction temperature range extends to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 420 @ 2mA, 5V |
| Frequency - Transition | 200MHz |
| Supplier Device Package | SST3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 350 mW |
