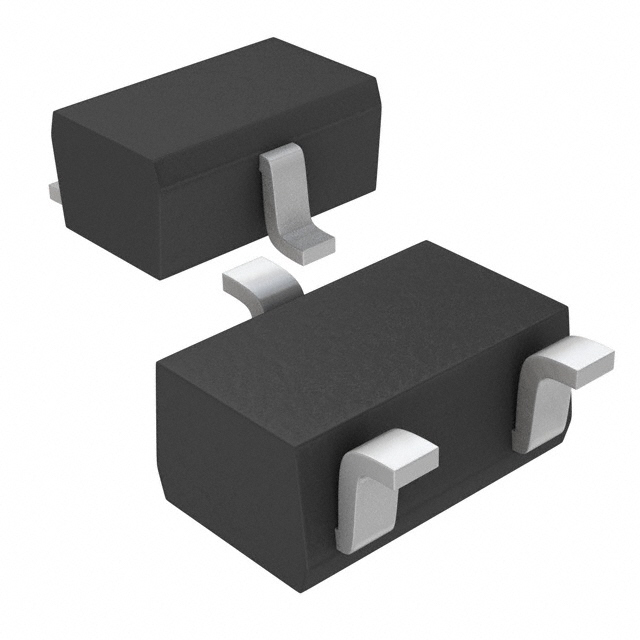

2SC5729T106R
TRANS NPN 30V 0.5A UMT3Manufacturer: Rohm Semiconductor
Categories: Single Bipolar Transistors
Quality Control: Learn More
This Rohm Semiconductor NPN bipolar junction transistor, part number 2SC5729T106R, is designed for general-purpose switching and amplification applications. It features a collector-emitter breakdown voltage of 30V and a continuous collector current capability of 500mA, with a maximum collector cutoff current of 1µA. The device offers a minimum DC current gain (hFE) of 180 at 50mA and 2V, and a transition frequency of 300MHz. With a maximum power dissipation of 200mW, this transistor is housed in a compact UMT3 (SC-70, SOT-323) surface-mount package, supplied on tape and reel. Its specifications make it suitable for use in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 50mA, 2V |
| Frequency - Transition | 300MHz |
| Supplier Device Package | UMT3 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 200 mW |
