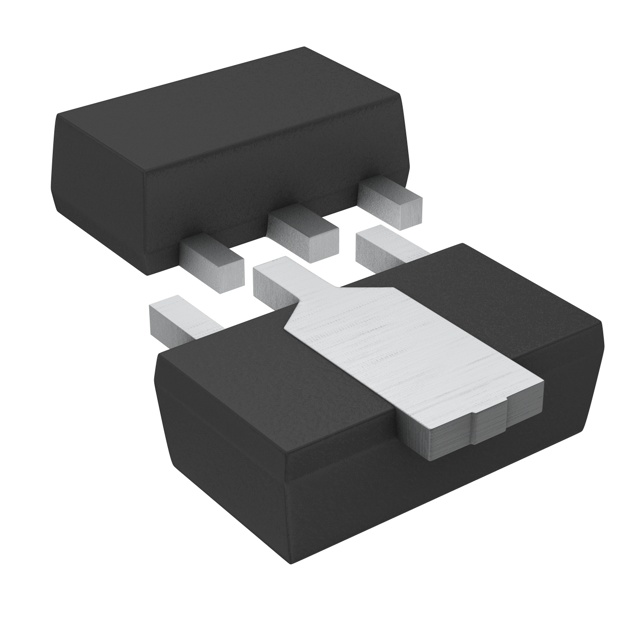

2SC4505T100P
TRANS NPN 400V 0.1A MPT3Manufacturer: Rohm Semiconductor
Categories: Single Bipolar Transistors
Quality Control: Learn More
Rohm Semiconductor NPN Bipolar Junction Transistor, part number 2SC4505T100P. This device offers a 400V collector-emitter breakdown voltage (Vceo) and a continuous collector current (Ic) capability of 100mA. Featuring a transition frequency (fT) of 20MHz and a maximum power dissipation of 2W, this transistor is designed for surface mount applications, utilizing the MPT3 package. Typical DC current gain (hFE) is 82 at 10mA collector current and 10V collector-emitter voltage. Collector cutoff current (Icbo) is a maximum of 10µA. Applications include power supply circuits and general-purpose amplification in industrial and consumer electronics. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 10mA, 10V |
| Frequency - Transition | 20MHz |
| Supplier Device Package | MPT3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Power - Max | 2 W |
