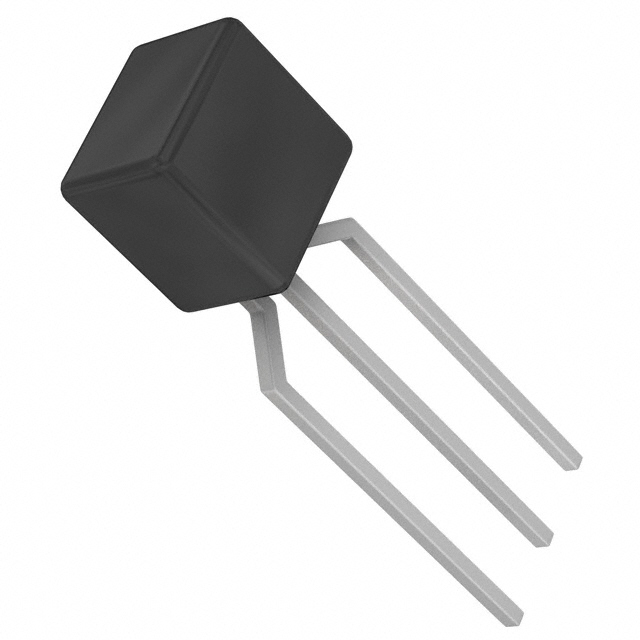

2N3906T93

TRANS PNP 40V 0.2A TO92

Manufacturer: Rohm Semiconductor

Categories: Single Bipolar Transistors

Quality Control: Learn More

The Rohm Semiconductor 2N3906T93 is a PNP bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This component features a collector-emitter breakdown voltage of 40V and a maximum continuous collector current of 200mA. With a minimum DC current gain (hFE) of 100 at 10mA and 1V, and a transition frequency of 250MHz, it offers reliable performance in moderate frequency ranges. The device dissipates a maximum power of 625mW and has a Vce saturation voltage of 400mV at 5mA base current and 50mA collector current. Packaged in a TO-92 (TO-226-3) through-hole form factor, the 2N3906T93 is supplied in Tape & Box (TB) packaging. Its operating temperature range extends up to 150°C (TJ). This transistor is suitable for use in industrial and consumer electronics.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)
Technical Details:
PackagingTape & Box (TB)
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
Mounting TypeThrough Hole
Transistor TypePNP
Operating Temperature150°C (TJ)
Vce Saturation (Max) @ Ib, Ic400mV @ 5mA, 50mA
Current - Collector Cutoff (Max)50nA
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 1V
Frequency - Transition250MHz
Supplier Device PackageTO-92
Current - Collector (Ic) (Max)200 mA
Voltage - Collector Emitter Breakdown (Max)40 V
Power - Max625 mW
