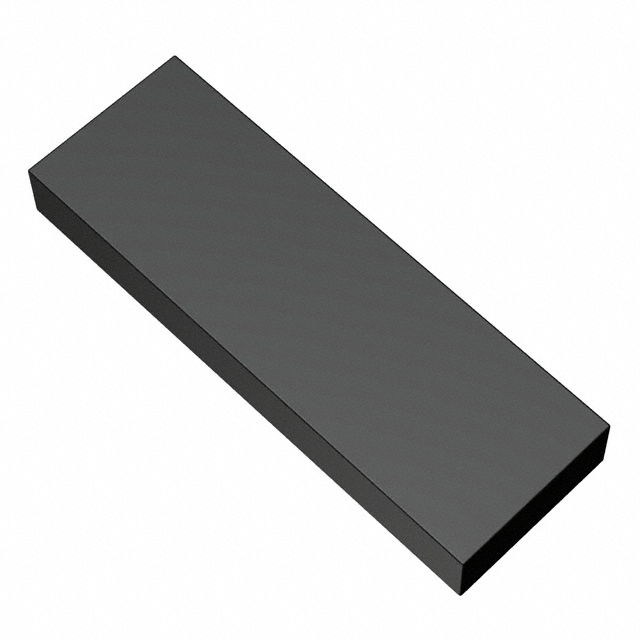

RN142ZS12ATE61
RF DIODE PIN 30V HMD12Manufacturer: Rohm Semiconductor
Categories: RF Diodes
Quality Control: Learn More
Rohm Semiconductor RN142ZS12ATE61 is a high-performance RF PIN diode designed for demanding applications. This component features six independent PIN diode elements within a compact HMD12 (2.4x0.8) package. It offers a maximum reverse voltage rating of 30V and a maximum forward current of 50 mA. The diode exhibits low capacitance, specified at 0.45pF @ 1V, 1MHz, and a low on-resistance of 1.5 Ohms @ 10mA, 100MHz, crucial for efficient RF switching and attenuation. Operating reliably up to 150°C, this device is suitable for use in wireless communications infrastructure, radar systems, and satellite equipment. Supplied in Tape & Reel (TR) packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-XFDFN |
| Diode Type | PIN - 6 Independent |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 0.45pF @ 1V, 1MHz |
| Resistance @ If, F | 1.5Ohm @ 10mA, 100MHz |
| Voltage - Peak Reverse (Max) | 30V |
| Supplier Device Package | HMD12 (2.4x0.8) |
| Current - Max | 50 mA |
