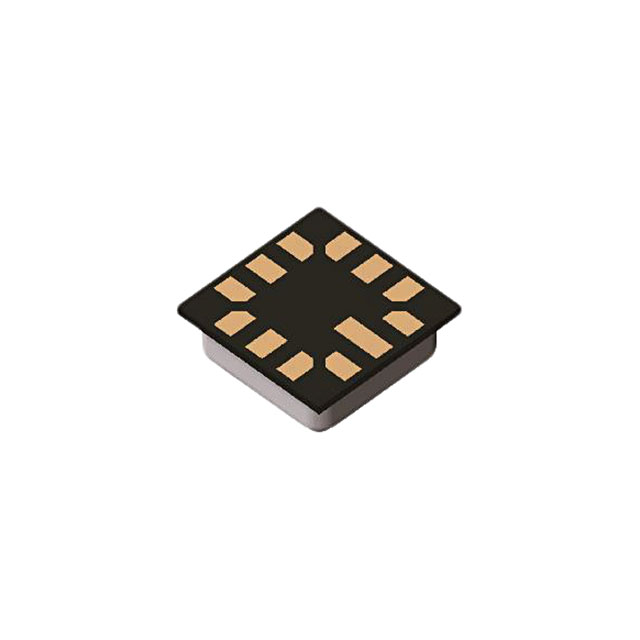

BM1383AGLV-ZE2
SENSOR 15.95PSIA 16BIT CLGA12VManufacturer: Rohm Semiconductor
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Rohm Semiconductor BM1383AGLV-ZE2 is a 16-bit absolute pressure sensor with a pressure range of 4.35 PSI to 15.95 PSI (30kPa to 110kPa). This surface mount component utilizes a 12-VFLGA package (CLGA12V025M) and offers I2C output. Engineered for precision, it features temperature compensation and an accuracy of ±1%. The device operates within a voltage supply range of 1.7V to 3.6V and an ambient temperature range of -40°C to 85°C. The BM1383AGLV-ZE2 is commonly found in applications requiring precise atmospheric pressure monitoring, such as portable navigation, weather forecasting equipment, and advanced industrial control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFLGA |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.7V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | CLGA12V025M |
| Port Style | No Port |
| Maximum Pressure | 290.08PSI (2000kPa) |
Request a Quote
Clients Also Buy

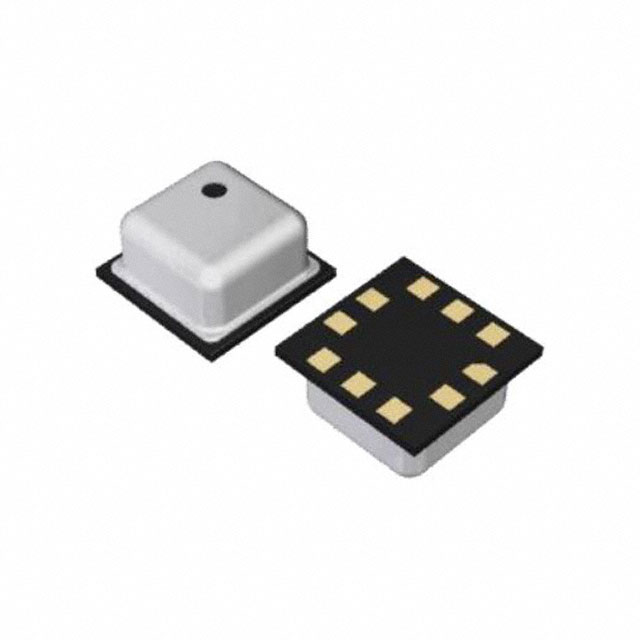

BM1386GLV-ZTR
SENSOR CLGA10V020A

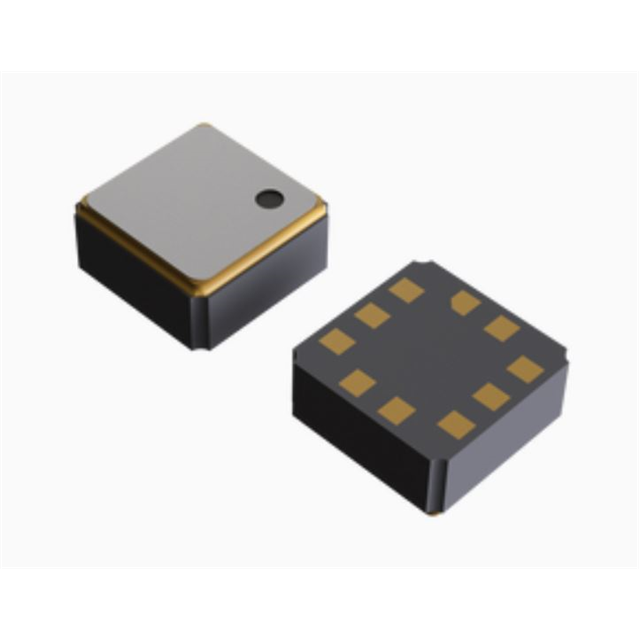

BM1390GLV-ZTR
