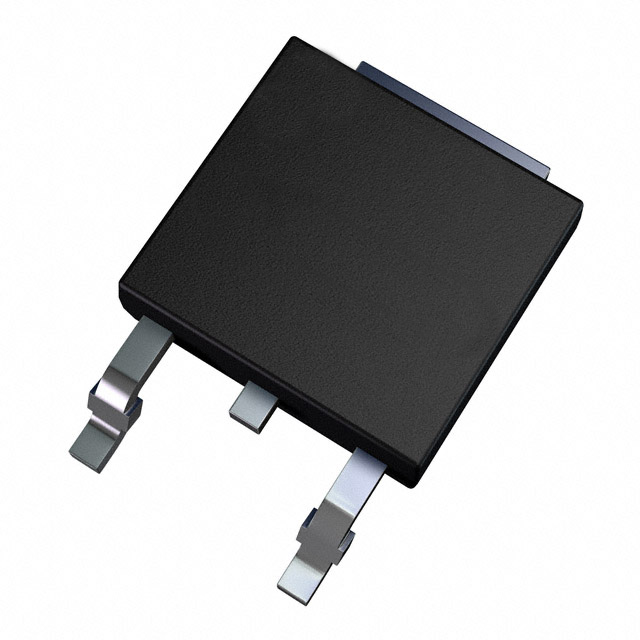

BV1LB045FPJ-CE1
IC PWR SWTCH N-CHAN 1:1 TO252-J3Manufacturer: Rohm Semiconductor
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 18A TO-252-J3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 45mOhm |
| Input Type | CMOS |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 18A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TO-252-J3 |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Grade | Automotive |
| Qualification | AEC-Q100 |
