RPM-20PBM
SENSOR PHOTO 800NM SIDE VIEW RADManufacturer: Rohm Semiconductor
Categories: Phototransistors
Quality Control: Learn More
Rohm Semiconductor's RPM-20PBM is a side-view phototransistor designed for efficient infrared detection at 800nm. This through-hole component offers a maximum collector current (Ic) of 30 mA and a low dark current (Id) of 500 nA, ensuring reliable performance in various ambient light conditions. With a collector-emitter breakdown voltage of 32 V and a maximum power dissipation of 100 mW, the RPM-20PBM is suitable for applications requiring precise optical sensing. Its radial package and a viewing angle of 28° facilitate integration into compact designs. Operating across a temperature range of -25°C to 85°C, this phototransistor finds application in industrial automation, consumer electronics, and optical sensing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 800nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C |
| Viewing Angle | 28° |
| Current - Dark (Id) (Max) | 500 nA |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Power - Max | 100 mW |
Request a Quote
Clients Also Buy

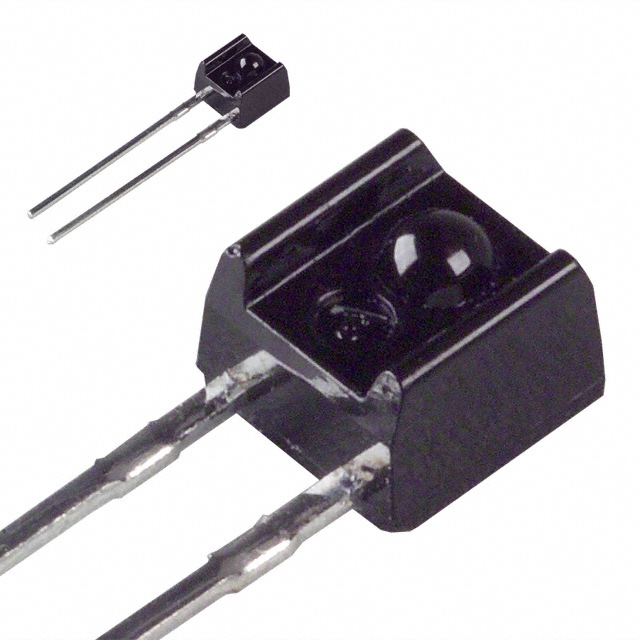

RPM-20PB
PHOTOTRANSISTOR, SIDE VIEW TYPE

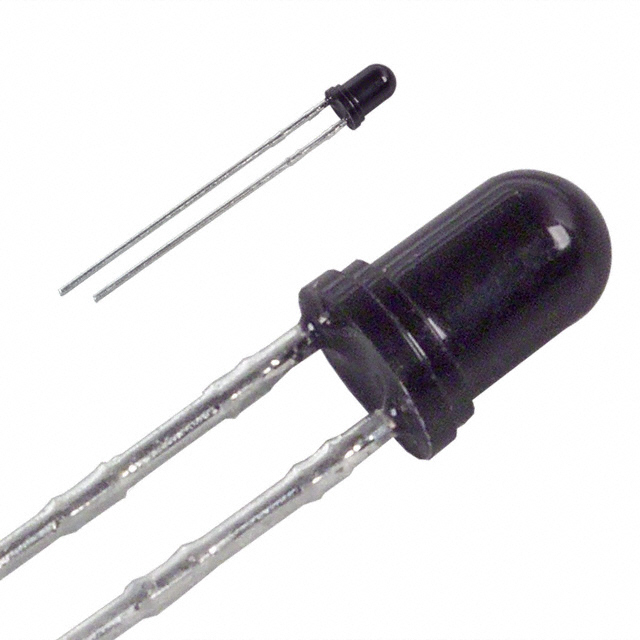

RPT-34PB3FFM
PHOTOTRANSISTOR TOP VIEW

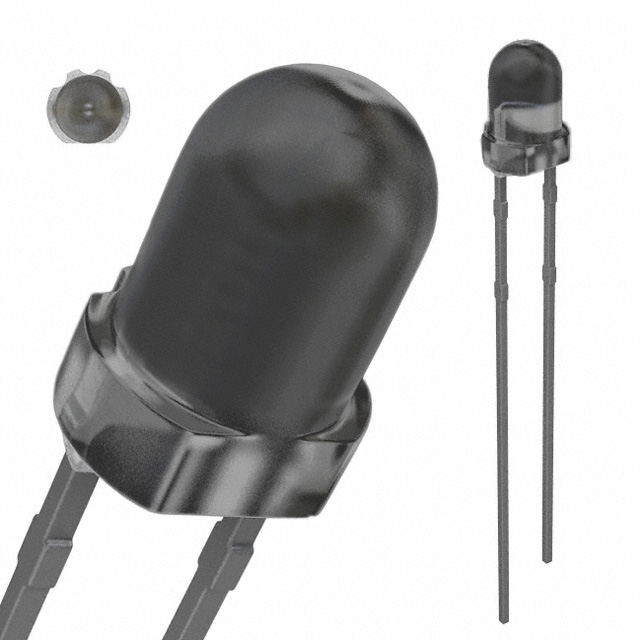

RPT-37PB3FFK
