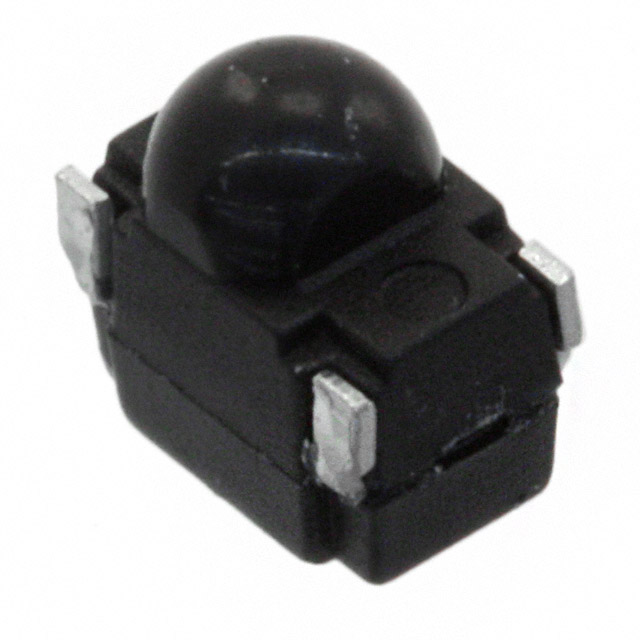

RPM-012PBT97
SENSOR PHOTO 800NM SIDE VIEW SMDManufacturer: Rohm Semiconductor
Categories: Phototransistors
Quality Control: Learn More
Rohm Semiconductor presents the RPM-012PBT97, a phototransistor designed for efficient light detection. This component features a side-view orientation and an 800nm peak sensitivity, making it suitable for applications requiring detection of infrared light sources. The 4-SMD, No Lead package facilitates surface mounting, streamlining PCB assembly. With a maximum collector current of 20 mA and a collector-emitter breakdown voltage of 32 V, it offers robust performance. The dark current is a maximum of 500 nA, ensuring low leakage. This phototransistor operates within a temperature range of -30°C to 85°C and has a maximum power dissipation of 75 mW. Its viewing angle is 24°. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Wavelength | 800nm |
| Mounting Type | Surface Mount |
| Orientation | Side View |
| Operating Temperature | -30°C ~ 85°C |
| Viewing Angle | 24° |
| Current - Dark (Id) (Max) | 500 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Power - Max | 75 mW |
