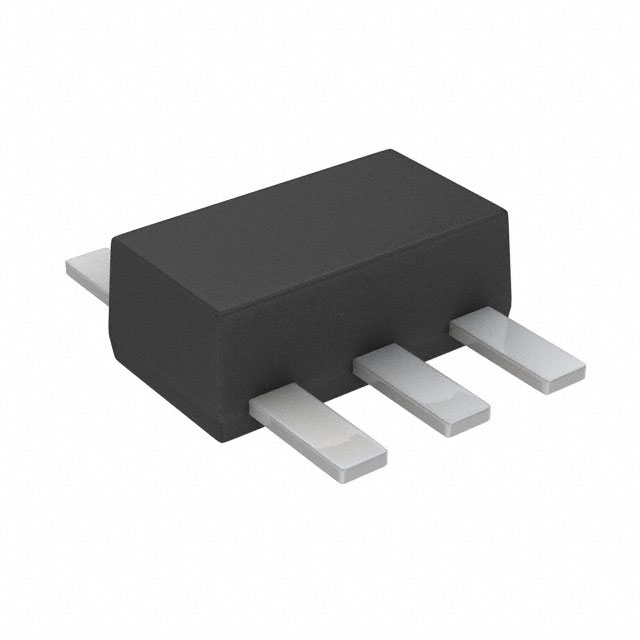

BU6904GF-GTR
IC MOTOR DRIVER 1.8V-5.5V 6SSOFManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Rohm Semiconductor BU6904GF-GTR is a fully integrated motor driver IC featuring a Power MOSFET technology. This component is designed for driving Brushless DC (BLDC) motors, incorporating both control and power stage functionalities. It operates with a supply voltage range of 1.8V to 5.5V, suitable for low-voltage applications. The output stage is configured as a half-bridge, delivering up to 800mA current. Control is managed via a Pulse Width Modulation (PWM) interface. The BU6904GF-GTR is supplied in a 6-SSOF package, specifically a 6-SMD, Flat Leads configuration, designed for surface mounting. This device finds application in areas such as fan motor drivers. The operating temperature range is specified from -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 800mA |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 1.8V ~ 5.5V |
| Applications | Fan Motor Driver |
| Technology | Power MOSFET |
| Voltage - Load | 1.8V ~ 5.5V |
| Supplier Device Package | 6-SSOF |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
