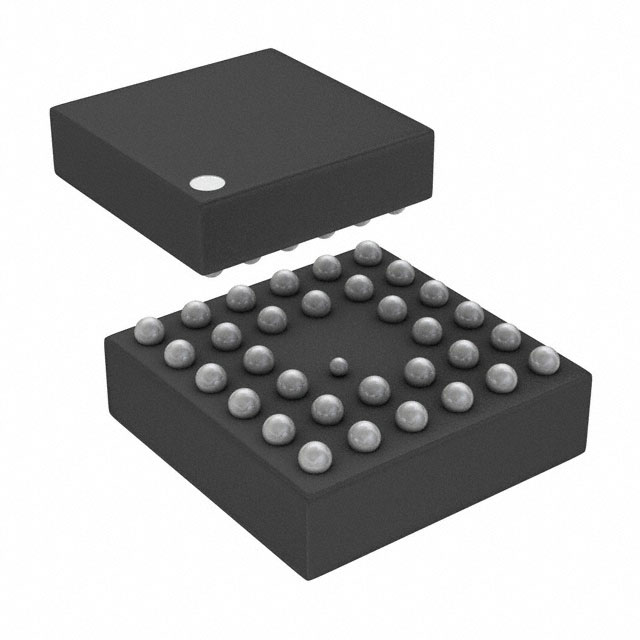

BU24032GW-E2
IC MTR DRV BIPLR 2.7-3.6V 32UCSPManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Rohm Semiconductor's BU24032GW-E2 is a bipolar stepper motor driver IC featuring a fully integrated control and power stage. This Power MOSFET technology device operates with a supply voltage range of 2.7V to 3.6V and supports load voltages from 2.7V to 5.5V. It delivers an output current of 500mA and is designed for precise control of brushed DC and voice coil motors, as well as bipolar stepper motors with step resolutions exceeding 256 microsteps. The driver utilizes a serial interface for communication and offers a half-bridge output configuration. Packaged in a compact 32-UCSP75M2 (2.5x2.5) format, suitable for surface mounting, this component is commonly found in camera applications. The BU24032GW-E2 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 500mA |
| Interface | Serial |
| Operating Temperature | -20°C ~ 85°C |
| Output Configuration | Half Bridge (11) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Applications | Camera |
| Technology | Power MOSFET |
| Voltage - Load | 2.7V ~ 5.5V |
| Supplier Device Package | 32-UCSP75M2 (2.5x2.5) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC, Voice Coil Motor |
| Step Resolution | >256 Microsteps |
