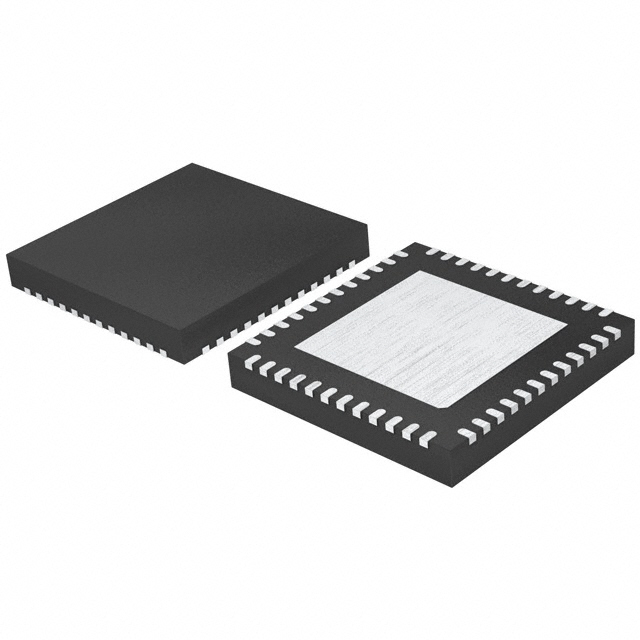

BD8255MUV-ME2
IC MOTOR DRIVER 4.5V-5.5V 48VQFNManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Rohm Semiconductor's BD8255MUV-ME2 is a highly integrated motor driver featuring a control and power stage. This device utilizes Power MOSFET technology and offers both SPI and Parallel interfaces for versatile control. Designed for Brushed DC motors, it operates within a voltage range of 4.5V to 5.5V for both supply and load. The BD8255MUV-ME2 is housed in a 48-VFQFN Exposed Pad package (VQFN48SV7070) suitable for surface mounting. Its output configuration includes a half-bridge topology. This component is commonly employed in general-purpose applications across various industries where precise motor control is essential. The operating temperature range is specified from -40°C to 90°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | SPI, Parallel |
| Operating Temperature | -40°C ~ 90°C (TA) |
| Output Configuration | Half Bridge (13) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 5.5V |
| Supplier Device Package | VQFN48SV7070 |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
