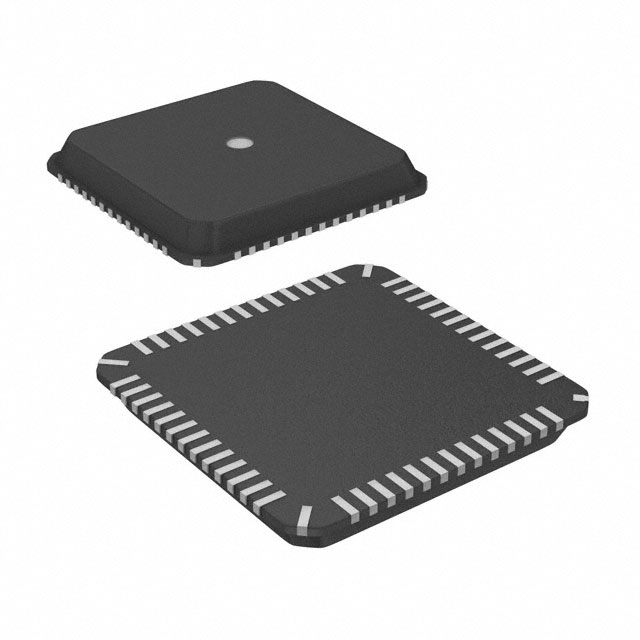

BD6757KN-E2
IC MTR DRVR BIPLR 2.5-5.5V 52QFNManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Rohm Semiconductor BD6757KN-E2 is a bipolar motor driver featuring a DMOS parallel interface. This fully integrated component provides both control and power stages for bipolar stepper motors, operating with a supply voltage range of 2.5V to 5.5V and a load voltage up to 8V. The device delivers an output current of 500mA and utilizes a 52-UQFN (7.2x7.2) package for surface mounting. Its internal configuration includes half-bridge outputs, making it suitable for applications requiring precise motor control. This component finds utility in industries such as camera manufacturing. The BD6757KN-E2 is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-VFQFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 500mA |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (14) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | Camera |
| Technology | DMOS |
| Voltage - Load | 2.5V ~ 8V |
| Supplier Device Package | 52-UQFN (7.2x7.2) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | - |
Request a Quote
Clients Also Buy

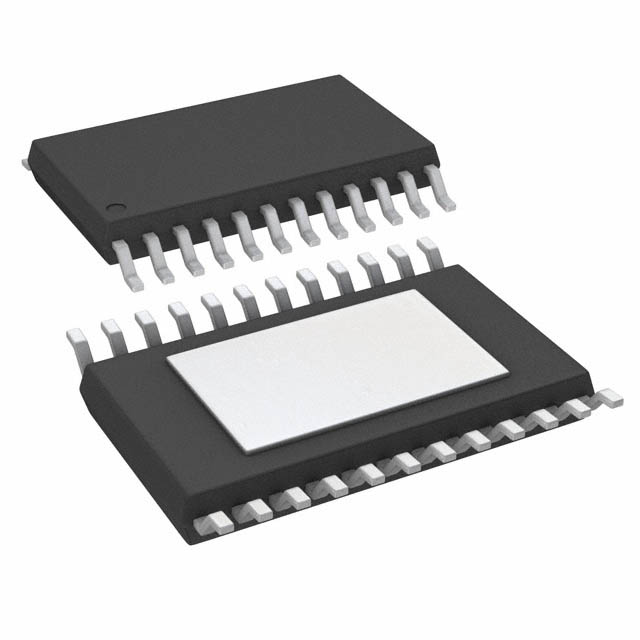

BD6380EFV-E2
IC MOTOR DRIVER BIPOLAR 24HTSSOP

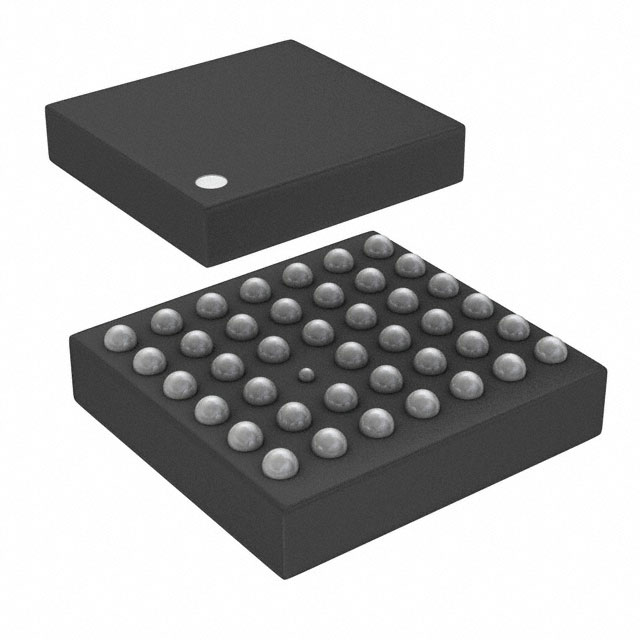

BU24024GU-E2
