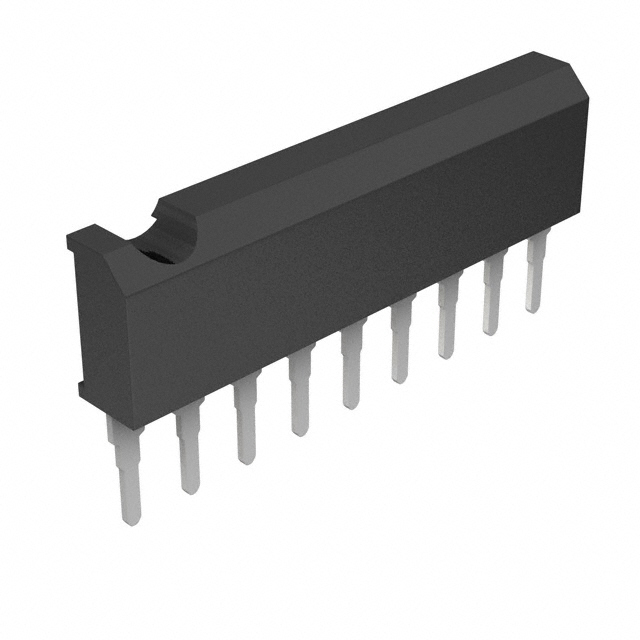

BA6956AN
IC MOTOR DRIVER 6.5V-15V 9SIPManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Rohm Semiconductor's BA6956AN is a bipolar motor driver IC designed for efficient control of brushed DC motors. This fully integrated component combines control and power stages, simplifying system design. Operating within a voltage range of 6.5V to 15V, the BA6956AN provides an output current of up to 1A. Its ON/OFF interface allows for straightforward motor activation and deactivation. The device features two half-bridge output configurations, suitable for a variety of motor drive applications. Packaged in a 9-SIP format for through-hole mounting, it is engineered for reliable performance across an industrial operating temperature range of -20°C to 150°C (TJ). This component finds application in consumer electronics, including media players.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 9-SIP |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | ON/OFF |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 6.5V ~ 15V |
| Applications | Media Player |
| Technology | Bipolar |
| Voltage - Load | 6.5V ~ 15V |
| Supplier Device Package | 9-SIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
