BA6219B
IC MOTOR DRIVER 8V-18V 10HSIPManufacturer: Rohm Semiconductor
Categories: Motor Drivers, Controllers
Quality Control: Learn More

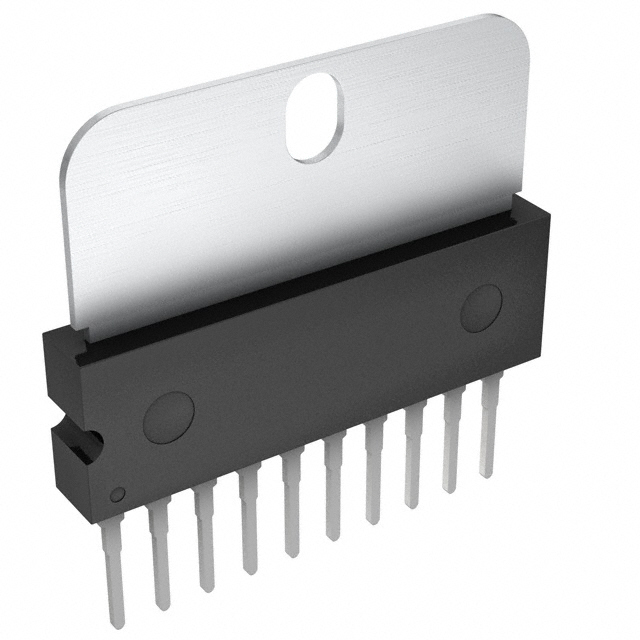

Rohm Semiconductor BA6219B is a bipolar motor driver featuring a fully integrated control and power stage. This device is designed for brushed DC motor applications, operating within a voltage range of 8V to 18V. The BA6219B provides an ON/OFF interface for control and delivers an output current of 2A. Its output configuration includes two half-bridge drivers. The component is housed in a 10-HSIP package with an exposed tab, suitable for through-hole mounting. Operating within an extended temperature range of -25°C to 150°C (TJ), this motor driver finds utility in general-purpose applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | ON/OFF |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 8V ~ 18V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 8V ~ 18V |
| Supplier Device Package | 10-HSIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
