ML610Q482P-NNNTBZ03A
LOW POWER MCU; NO LCD, 64KBYTE RManufacturer: Rohm Semiconductor
Categories: Microcontrollers
Quality Control: Learn More

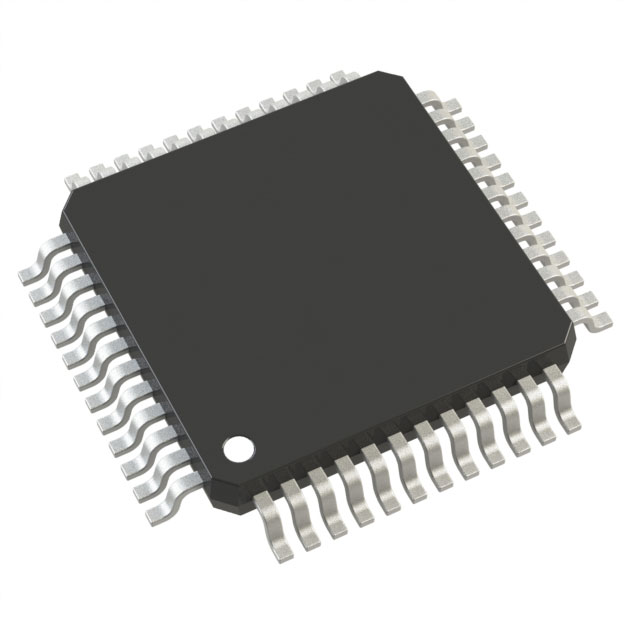

The Rohm Semiconductor ML610400 series 8-bit microcontroller, part number ML610Q482P-NNNTBZ03A, features an nX-U8/100 core operating at 4.2MHz. This compact microcontroller offers 64KB of FLASH program memory (32K x 16) and 4KB of RAM. Connectivity options include I2C, SSIO, and UART/USART interfaces. Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The device supports both external and internal oscillators and is supplied in a 48-TQFP (7x7) surface mount package. Operating from a voltage range of 1.1V to 3.6V, this component is suitable for applications requiring low power consumption across various industrial sectors. It is delivered in Tape & Reel packaging.
Additional Information
Series: ML610400RoHS Status: RoHS CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Speed | 4.2MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | nX-U8/100 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.1V ~ 3.6V |
| Connectivity | I2C, SSIO, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 48-TQFP (7x7) |
| Grade | - |
| Number of I/O | 22 |
| Qualification | - |
