ML610Q422P-NNNTBZ03A
IC MCU 8BIT 32KB FLASH 120TQFPManufacturer: Rohm Semiconductor
Categories: Microcontrollers
Quality Control: Learn More

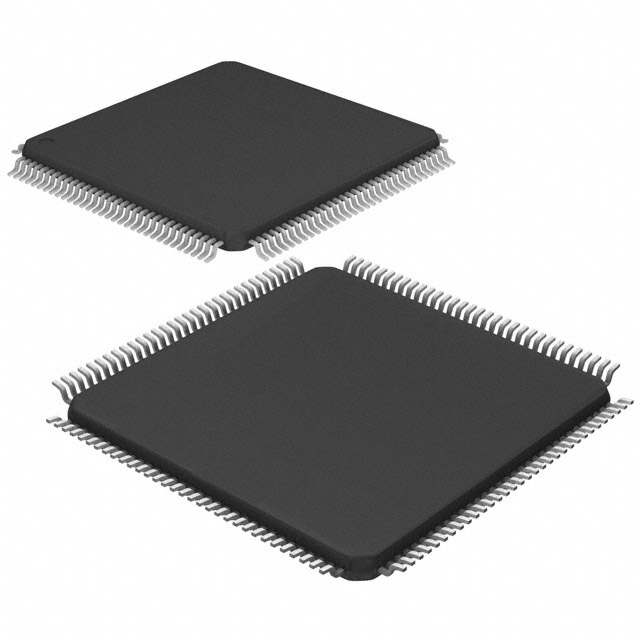

Rohm Semiconductor ML610400 Series 8-Bit Microcontroller IC, part number ML610Q422P-NNNTBZ03A. This device features an nX-U8/100 core, operating at 4.2MHz. It offers 32KB of FLASH program memory (16K x 16) and 2KB of RAM. Connectivity options include I2C, SSP, and UART/USART. Integrated peripherals include LCD, Melody Driver, POR, PWM, and WDT. Data conversion capabilities include two 12-bit and two 24-bit ADCs. The component is supplied in a 120-TQFP (14x14) package for surface mounting. Operating voltage ranges from 1.1V to 3.6V, with an operating temperature range of -40°C to 85°C. This microcontroller is utilized in applications such as consumer electronics and industrial automation.
Additional Information
Series: ML610400RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-TQFP |
| Mounting Type | Surface Mount |
| Speed | 4.2MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | nX-U8/100 |
| Data Converters | A/D 2x12b, 2x24b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.1V ~ 3.6V |
| Connectivity | I2C, SSP, UART/USART |
| Peripherals | LCD, Melody Driver, POR, PWM, WDT |
| Supplier Device Package | 120-TQFP (14x14) |
| Number of I/O | 14 |
| Programmable | Not Verified |
