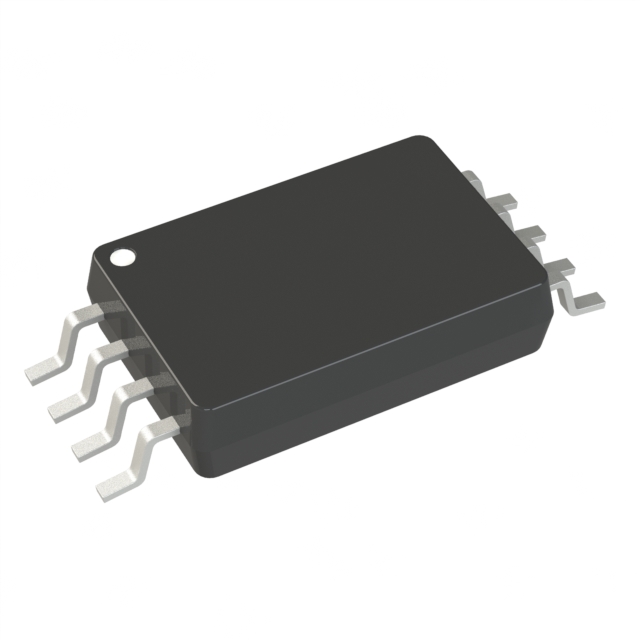

BR93H66RFVT-2CE2
IC EEPROM 4KBIT SPI 2MHZ 8TSSOPBManufacturer: Rohm Semiconductor
Categories: Memory
Quality Control: Learn More
Rohm Semiconductor's BR93H66RFVT-2CE2 is a 4Kbit EEPROM memory IC designed for demanding applications. This non-volatile memory features a Microwire interface and operates with a maximum clock frequency of 2 MHz. The memory organization is 256 x 16 bits, providing efficient data storage. Engineered for reliability, this component boasts an automotive grade qualification (AEC-Q100) and operates across a wide temperature range of -40°C to 125°C. The device is housed in a compact 8-TSSOP-B package, suitable for surface mount applications. With a supply voltage range of 2.5V to 5.5V, the BR93H66RFVT-2CE2 is well-suited for automotive, industrial control, and consumer electronics systems requiring robust data retention and retrieval. The write cycle time for a word or page is 4ms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 4Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Technology | EEPROM |
| Clock Frequency | 2 MHz |
| Memory Format | EEPROM |
| Supplier Device Package | 8-TSSOP-B |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 4ms |
| Memory Interface | Microwire |
| Memory Organization | 256 x 16 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
