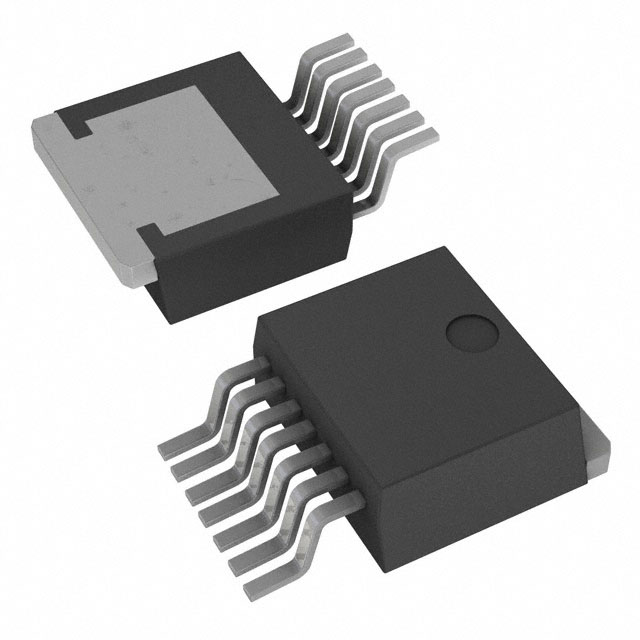

BD4271FP2-CE2
IC REG LINEAR 5V 550MA TO263-7Manufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 550mA TO-263-7
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 550mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263-7 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Qualification | AEC-Q100 |
