BD3540NUV-E2
IC REG LIN POS ADJ 500MA 10VSONManufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Rohm Semiconductor BD3540NUV-E2 is a positive adjustable linear voltage regulator IC. This component delivers a stable 500mA output current and features an adjustable output voltage range from 0.65V to 2.7V. The device operates with a maximum input voltage of 5.5V and exhibits a low dropout voltage of 0.3V at 500mA. Control features include Enable, Power Good, and Soft Start functionalities. Protection mechanisms such as Over Current, Over Temperature, and Under Voltage Lockout (UVLO) are integrated for robust operation. The BD3540NUV-E2 is housed in a VSON010V3030 package, suitable for surface mounting and supplied on tape and reel. This regulator finds application in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

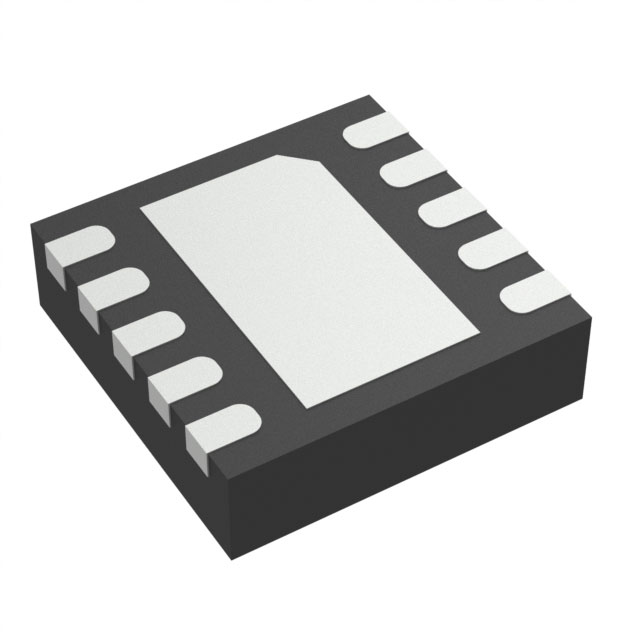

| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -10°C ~ 100°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | VSON010V3030 |
| Voltage - Output (Max) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.65V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | - |
| Voltage Dropout (Max) | 0.3V @ 500mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 1 mA |
