BD3523HFN-TR
IC REG LINEAR POS ADJ 2A 8HSONManufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

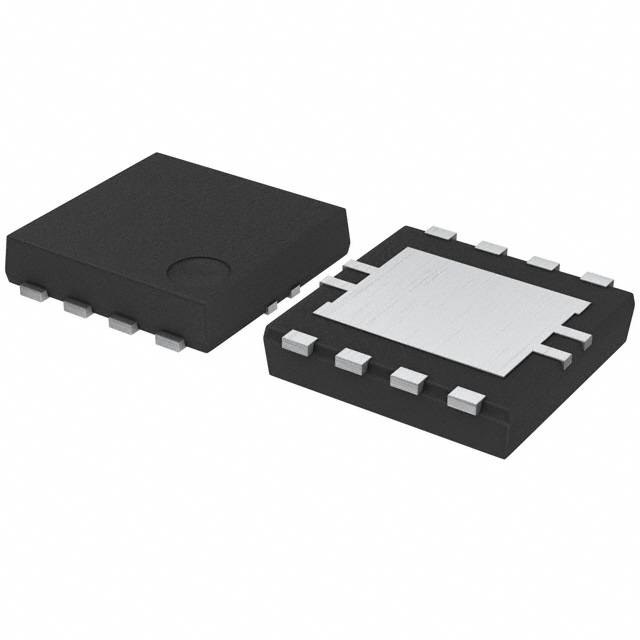

Rohm Semiconductor BD3523HFN-TR is an adjustable positive linear voltage regulator IC. This component delivers a stable output current of up to 2A and features an adjustable output voltage range from 0.65V to a maximum of 2.7V, with a maximum input voltage of 4.5V. The BD3523HFN-TR is supplied in a compact 8-HSON package suitable for surface mounting. Key control features include an Enable pin and a Soft Start function for controlled power-up sequences. Protection mechanisms are integrated to safeguard against overcurrent, overtemperature conditions, and undervoltage lockout (UVLO). Quiescent current is maintained at 0.7 mA. This regulator finds application in various industrial and consumer electronics, including automotive systems and power management solutions. The product is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -10°C ~ 100°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 0.7 mA |
| Voltage - Input (Max) | 4.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-HSON |
| Voltage - Output (Max) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.65V |
| Control Features | Enable, Soft Start |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 1.2 mA |
