BD00FD0WHFP-TR
2A VARIABLE OUTPUT, HIGH-ACCURACManufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

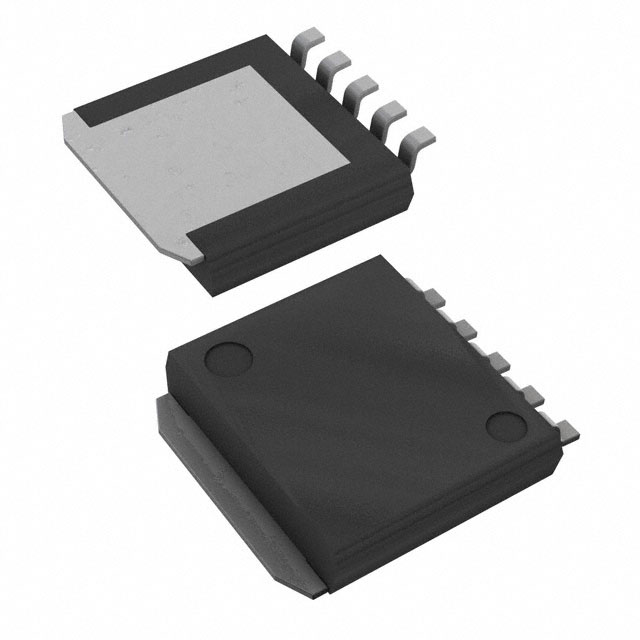

Linear Voltage Regulator IC Positive Adjustable 1 Output 2A HRP-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | HRP-5 (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 32V |
| Number of Regulators | 1 |
| Supplier Device Package | HRP-5 |
| Voltage - Output (Max) | 18V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.55V @ 1A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
