BD00EA5WFP-E2
500MA ADJUSTABLE OUTPUT LDO REGUManufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

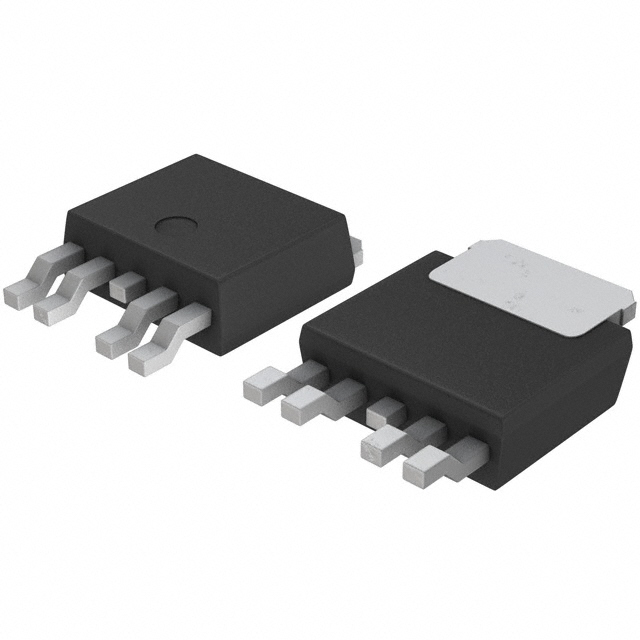

Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA TO-252-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 42V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252-5 |
| Voltage - Output (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.83V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 46 µA |
