BD00C0AWFPS-ME2
IC REG LIN POS ADJ 1A TO252S-5Manufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Rohm Semiconductor BD00C0AWFPS-ME2 is a positive adjustable linear voltage regulator designed for demanding automotive applications. This component delivers a stable 1A output current with an input voltage range up to 25V and an adjustable output from 3V to 15V. Featuring a low dropout voltage of 1V at 500mA and a typical quiescent current of 2.5mA, it offers efficient power management. The BD00C0AWFPS-ME2 includes over-current and over-temperature protection, along with an enable pin for enhanced control. Its high power supply rejection ratio (PSRR) of 55dB at 120Hz ensures clean voltage regulation. The AEC-Q100 qualified device is supplied in a TO-252S-5 (TO-252AD) surface-mount package, suitable for robust electronic systems in the automotive sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

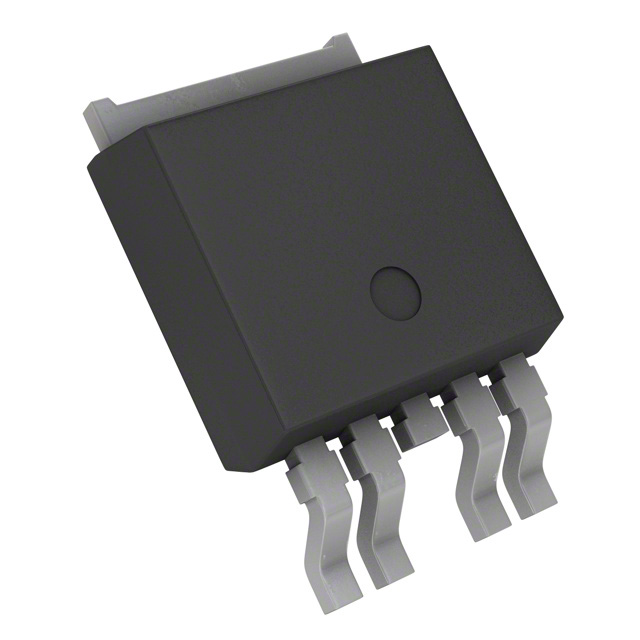

| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2.5 mA |
| Voltage - Input (Max) | 25V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252S-5 |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 1V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Qualification | AEC-Q100 |
