BA15BC0WT-V5
IC REG LINEAR 1.5V 1A TO220FP-5Manufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Rohm Semiconductor BA15BC0WT-V5 is a positive fixed output linear voltage regulator IC. This component delivers a stable 1.5V output with a maximum current capability of 1A. Designed for through-hole mounting in a TO-220FP-5 package, it features an enable control for flexible power management. The regulator offers robust protection against overcurrent and overtemperature conditions, ensuring operational reliability. With a low quiescent current of 0.5mA and a low supply current of 900µA (Max), it is suitable for power-sensitive applications. The input voltage range extends up to 16V, and the device exhibits a Power Supply Rejection Ratio (PSRR) of 55dB at 120Hz. This regulator is commonly utilized in industrial automation, automotive systems, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

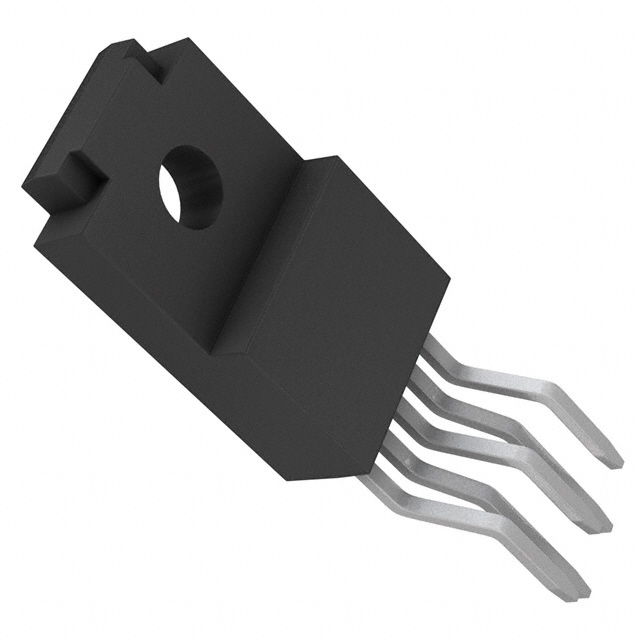

| Package / Case | TO-220-5 Full Pack (Formed Leads) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 0.5 mA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220FP-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 900 µA |
