BA036LBSG2-TR
IC REG LINEAR 3.6V 150MA SMP5Manufacturer: Rohm Semiconductor
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

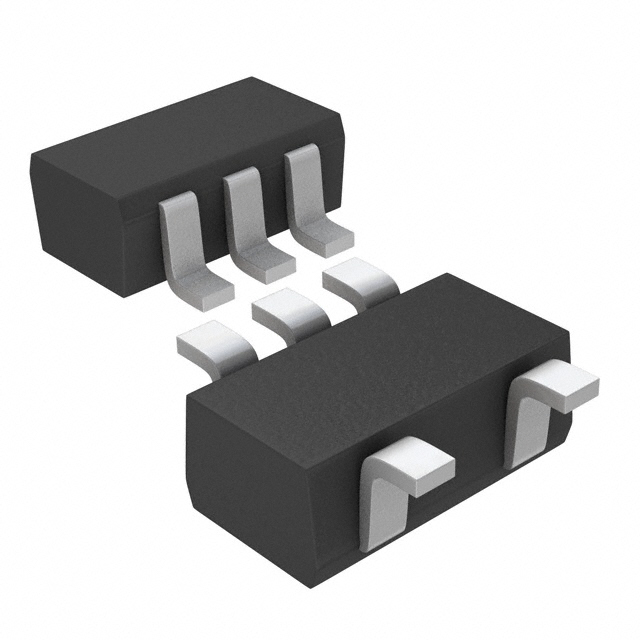

Rohm Semiconductor BA036LBSG2-TR is a fixed, positive linear voltage regulator with an output voltage of 3.6V and an output current capability of 150mA. This device features a low quiescent current of 15 µA and a low dropout voltage of 0.15V at 50mA. Protection features include over-current and over-temperature shutdown. The regulator offers a Power Supply Rejection Ratio (PSRR) ranging from 66dB to 56dB across a frequency range of 400Hz. An enable control feature is also integrated. The BA036LBSG2-TR is supplied in a compact SMP5 (SC-74A, SOT-753) surface-mount package, delivered on tape and reel. This component is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 15 µA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | SMP5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.6V |
| Control Features | Enable |
| PSRR | 66dB ~ 56dB (400Hz) |
| Voltage Dropout (Max) | 0.15V @ 50mA |
| Protection Features | Over Current, Over Temperature |
